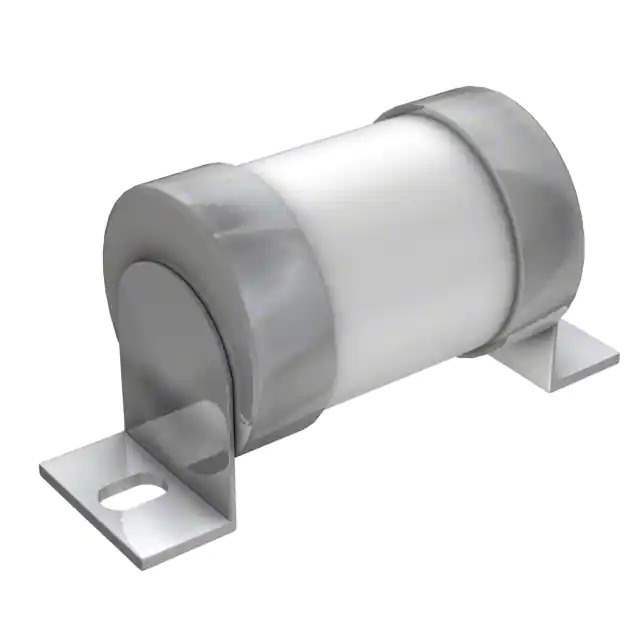

100LET Real Image
Same model may have multiple batches, images only for reference.

100LET

Part No 100LET
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 100A 240VAC/150VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Eaton Bussmann
Series LET
Package Bulk
Product Status Active
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 100A
Voltage Rating - AC 240 V
Voltage Rating - DC 150 V
Applications Electrical, Industrial
Approval Agency CE, UR
Breaking Capacity @ Rated Voltage 200kA
Package / Case Cylindrical, Blade Terminal (Bolt)
Size / Dimension 0.697" Dia x 1.032" L (17.70mm x 26.20mm)
Melting I2t 600
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 853596-100LET
Ultra Librarian 3D Model Ultra Librarian 100LET CAD Model

Description

The 853596-100LET is a cartridge fuse from the LET series by Eaton Bussmann.

  • Voltage Rating (AC): 240V AC
  • Voltage Rating (DC): 150V DC
  • Breaking Capacity: 200kA @ Rated Voltage
  • Size: 0.697" diameter by 1.032" length
  • Package: Bulk
  • Mounting Type: Bolt Mounting
  • Product Status: Active
  • Approvals: CE, UR
