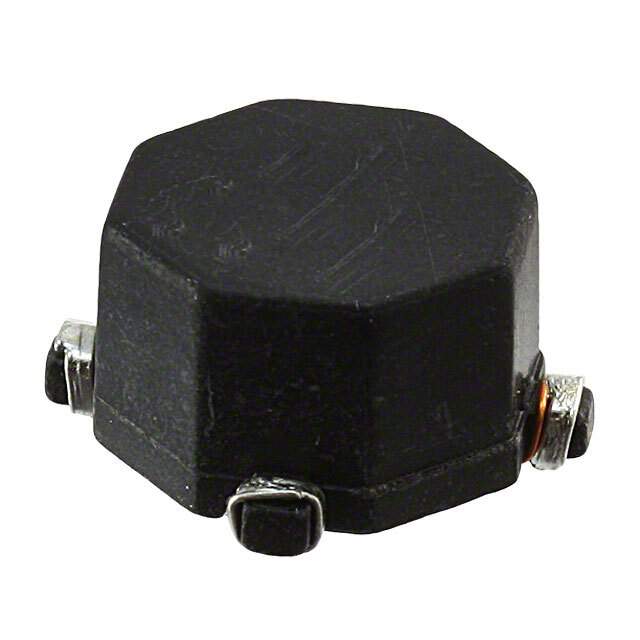

CTX10-2A-R Real Image
Same model may have multiple batches, images only for reference.

CTX10-2A-R

Part No CTX10-2A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 11.38UH SMD / Inductor Power Wirewound 11.38uH/45.5uH 25% 100KHz Amorphous Metal 2.89A/1.45A 0.047Ohm/0.188Ohm DCR T/R
Datasheet
CTX10-2A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series OCTA-PAC PLUS
Packaging Reel package
Number of Coils 2
Test Inductance - Connected In Series 45.5μH
Inductance - Connected In Parallel 11.38μH
Tolerance ±25%
Current Rating - Parallel 2.89A
Current Rating - Series 1.45A
Current Saturation - Parallel 3.13A
Current Saturation - Series 1.56A
DC Resistance (DCR) - Parallel 47 mOhm Max
DC Resistance (DCR) - Series 188 mOhm Max
Shielding Unshielded
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)
Win Source Part Number 771925-CTX10-2A-R
Popularity Medium
Supply and Demand Status Limited
Family Name CTX
Introduction Date April 19, 2006
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CTX10-2A-R CAD Model

Description

The CTX10-2A-R is a product of Eaton which belongs to the OCTA-PAC PLUS series.

  • Series: OCTA-PAC PLUS
  • Packaging: Reel
  • Mounting Type: SMD
  • Unshielded: Yes
  • Tolerance: ±25%
  • Height: 0.235" (5.97mm)
  • Number of Coils: 2
  • Inductance - Parallel: 11.38μH
  • Current Rating - Parallel: 2.89A
  • Current Rating - Series: 1.45A
  • Current Saturation - Parallel: 3.13A
  • Current Saturation - Series: 1.56A
  • DC Resistance (DCR) - Parallel: 47 mOhm Max
  • DC Resistance (DCR) - Series: 188 mOhm Max
  • Dimension: 0.450" L x 0.450" W (11.43mm x 11.43mm)
  • Test Inductance - Series: 45.5μH
  • Cross-reference: CTX10-2A
  • ECCN: EAR99
  • Country of Origin: Philippines
  • Estimated EOL Date: Obsolete/End of Life
