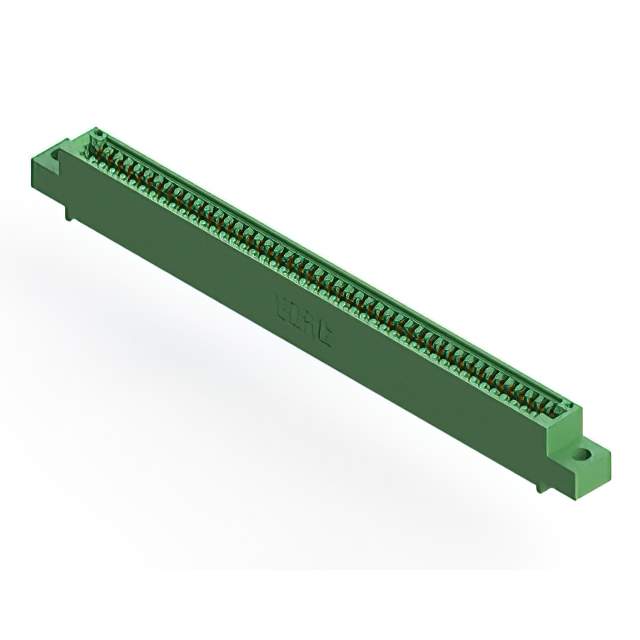

345-046-524-404 Real Image
Same model may have multiple batches, images only for reference.

345-046-524-404

Part No 345-046-524-404
Manufacturer EDAC Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE SINGLE FML 46POS 0.100 / 46 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Datasheet
345-046-524-404 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr EDAC Inc.
Series 345
Package Box
Card Type Non Specified - Single Edge
Gender Female
Number of Positions/Bay/Row 46
Number of Positions 46
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 1
Pitch 0.100" (2.54mm)
Read Out Single
Mounting Type Through Hole
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Green
Flange Feature Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Polyester Thermoplastic
Termination Rows 1
Base Product Number 345-046
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-345-046-524-404
Standard Package 25
Win Source Part Number 1170355-345-046-524-404
Ultra Librarian 3D Model Ultra Librarian 345-046-524-404 CAD Model

Description

The 1170355-345-046-524-404 is a female card edge connector from EDAC Inc.

  • Contact Type: cantilever
  • Pitch: 0.100" (2.54mm)
  • Positions: 46
  • Contact Finish: gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Insulation Material: polyester thermoplastic
  • Mounting: through-hole
  • Temperature Range: -40°C ~ 105°C
  • REACH: unaffected
  • Package Quantity: 25
  • Package: box
  • Flange: top mount opening, unthreaded, 0.156" (3.96mm) in diameter
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Card Type: non-specified single edge
  • Part Number: 151-345-046-524-404
  • Manufacturer: EDAC Inc.
