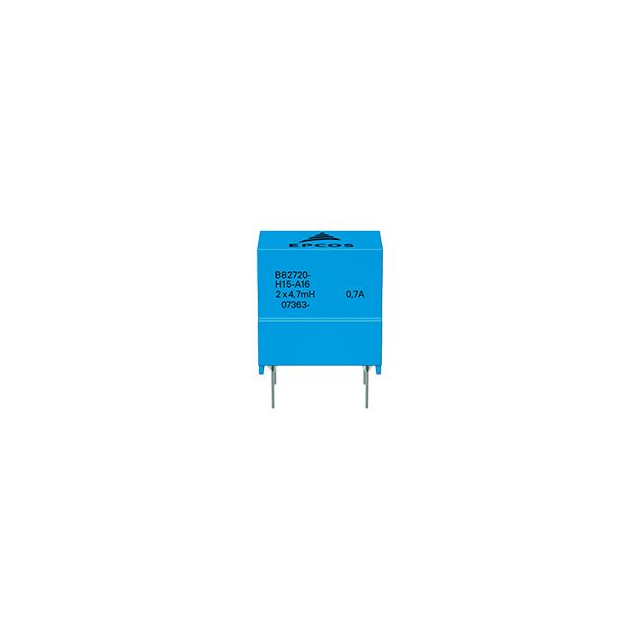

B82720H0015A016 Real Image
Same model may have multiple batches, images only for reference.

B82720H0015A016

Part No B82720H0015A016
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 4.7MH 700MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 23 Weeks
Features 2 Line Common Mode Choke Through Hole 700mA DCR 500mOhm (Typ)
Manufacturer EPCOS (TDK)
Series B82720
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Through Hole
Package Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number B82720H15A16-ND, 495-77070, B82720H0015A016-ND, B82720H 15A 16, B82720H15A16
Quantity per package 450
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912709-B82720H0015A016
Ultra Librarian 3D Model Ultra Librarian B82720H0015A016 CAD Model

Description

The EPCOS (TDK) 912709-B82720H0015A016 is a high popularity electronic component that comes with a balanced supply and demand status.

  • Manufacturer: EPCOS (TDK)
  • Part Number: 912709-B82720H0015A016
  • Suitability: Filters
  • Series: B82720
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC pin
  • Feature: 2 Line Common Mode Choke Through Hole 700mA DCR 500mOhm (Typ)
  • Operating Temperature Range: -40°C ~ 125°C
  • Quantity per Package: 450
  • Estimated Production Lead Time: 23 weeks
  • Other Part Numbers: B82720H15A16-ND, 495-77070, B82720H0015A016-ND, B82720H 15A 16, B82720H15A16
