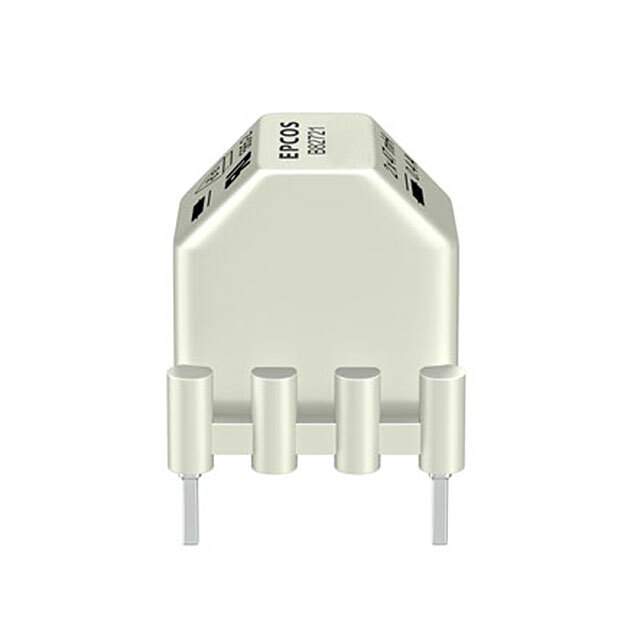

B82721K2501N001 Real Image
Same model may have multiple batches, images only for reference.

B82721K2501N001

Part No B82721K2501N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 18MH 500MA 2LN TH
Datasheet
B82721K2501N001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 18mH @ 10kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.4 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.823" (20.90mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 200256-B82721K2501N001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82721K2501N001 CAD Model

Description

Description

The B82721K2501N001 is a high-performance common mode choke designed for effective electromagnetic interference (EMI) suppression in automotive and industrial applications. It comes with compact packaging, making it an excellent choice for tight spaces.

Features and Benefits

  • High Impedance: Ensures efficient noise suppression.
  • Compact Design: Saves space in electronic circuits.
  • Low DC Resistance: Minimizes power loss.

Applications

  • Automotive Electronics
  • Industrial Automation Systems
  • Power Supply Devices

Additional Details: The choke is suitable for an operating temperature range from -40°C to +125°C, providing durability in extreme conditions.
