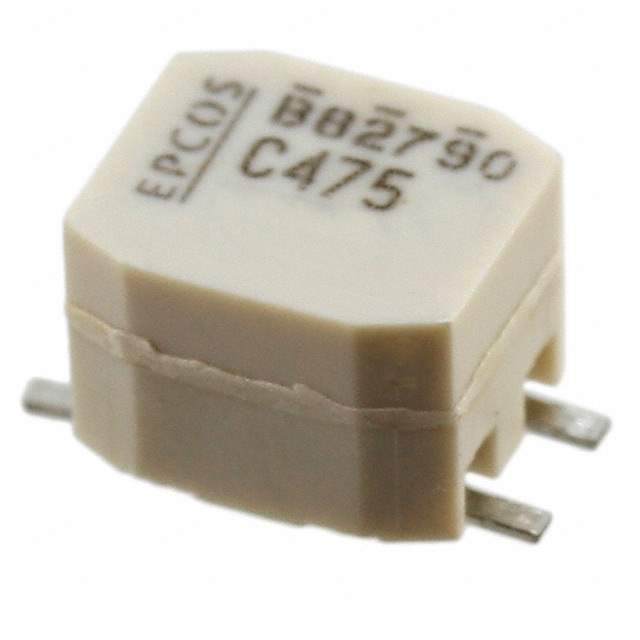

B82790C0475N265 Real Image
Same model may have multiple batches, images only for reference.

B82790C0475N265

Part No B82790C0475N265
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 4.7MH 200MA 2LN SMD AEC-Q200
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features 2 Line Common Mode Choke Surface Mount 200mA DCR 510mOhm (Typ)
Manufacturer EPCOS (TDK)
Series B82790
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 Gull Wing
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number B82790C 475N265, B82790C475N265, 495-4415-6, 495-4415-2, 495-4415-1
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912723-B82790C0475N265
Ultra Librarian 3D Model Ultra Librarian B82790C0475N265 CAD Model

Description

The B82790C0475N265 common mode choke from EPCOS (TDK) is designed to provide high performance in a variety of electronic devices.

  • Manufacturer: EPCOS (TDK)
  • Part Number: B82790C0475N265
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 Gull Wing
  • DCR: 510mOhm (Typ)
  • Maximum Current Rating: 200mA
  • Operating Temperature Range: -40°C to 125°C
  • Status: Not for new designs
  • ECCN: EAR99
  • REACH: Unaffected
  • Quantity per Package: 1500
  • HTSUS Code: 8548.90.0100
  • Other Part Numbers: B82790C 475N265, B82790C475N265, 495-4415-6, 495-4415-2, and 495-4415-1
