ESP8266EX

Part No ESP8266EX
Manufacturer Espressif
Catalog HOT - SALES and EOL Components
Description Highly Integrated Wi-Fi SoC Solution | IC RF TXRX+MCU WIFI 32VFQFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Espressif Systems
Packaging Tape and Reel
Type TxRx + MCU
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.4GHz
Data Rate (Maximum) 54Mbps
Power - Output 20dBm
Sensitivity -91dBm
Serial Interfaces I2C, I2S, SPI, UART
GPIO 8
Supply Voltage (V) 2.5V ~ 3.6V
Receiving Current 50mA ~ 56mA
Transmitting Current 120mA ~ 170mA
Mounting Style SMD

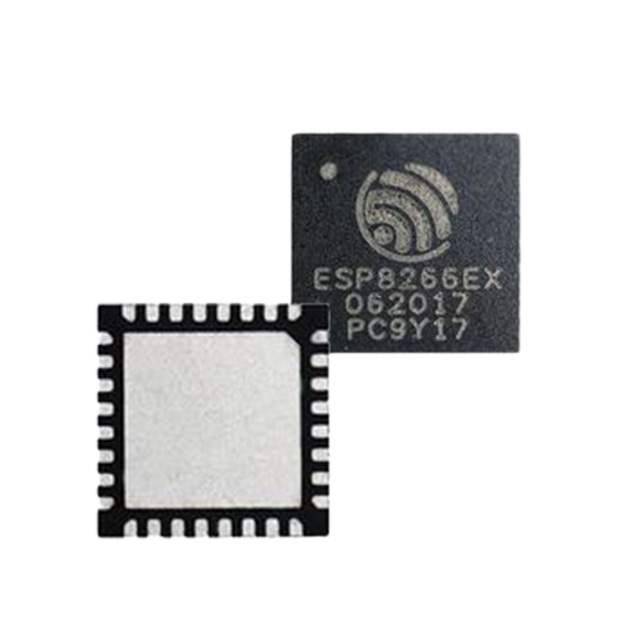

Manufacturer Package 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Manufacturer Pack Quantity 5,000
MSL Level 3 (168 Hours)
Win Source Part Number 24714-ESP8266EX
ECCN EAR99
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESP8266EX CAD Model

Description

ESP8266EX from Espressif is a widely recognized Wi-Fi system-on-chip used in connected products that need cost-effective wireless networking for embedded designs. Engineers commonly evaluate this device for smart home controls, IoT sensor nodes, consumer accessories, wireless monitoring, and compact network-enabled modules where fast integration and broad ecosystem familiarity are important. Its market positioning is strong for legacy and high-volume designs that rely on established development resources and proven community adoption rather than the newest wireless platform. For buyers and design teams, the main consideration is long-term sourcing confidence: the lifecycle status provided here is unknown, so production planning and redesign risk should be reviewed carefully before committing to new programs. RoHS compliance information is also not available in the supplied data. Procurement and compliance teams should confirm the latest environmental declarations, datasheet details, and manufacturer statements before release to production, especially for regulated shipments or lifecycle-sensitive builds.
