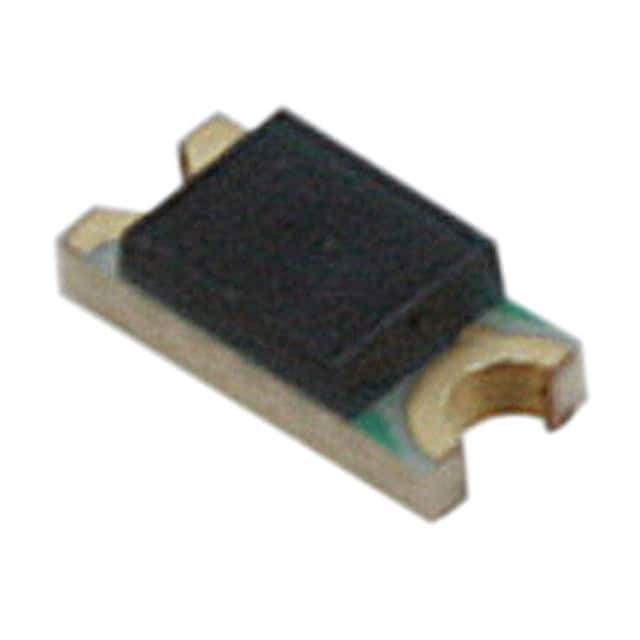

PD15-21B/TR8 Real Image
Same model may have multiple batches, images only for reference.

PD15-21B/TR8

Part No PD15-21B/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 940NM 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Everlight Electronics Co Ltd
Package Tape & Reel
Product Status Active
Wavelength 940nm
Spectral Range 730nm ~ 1100nm
Diode Type PIN
Response Time 6ns
Voltage - DC Reverse (Vr) (Max) 32 V
Current - Dark (Typ) 10nA
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Base Product Number PD15-21
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 653836-PD15-21B/TR8
Ultra Librarian 3D Model Ultra Librarian PD15-21B/TR8 CAD Model

Description

The 653836-PD15-21B/TR8 is a photodiode optical sensor from Everlight Electronics Co Ltd.

  • Application: Sensors and Transducers
  • Package: Surface Mount
  • Response Time: 6ns
  • Diode Type: PIN
  • Maximum DC Reverse Voltage: 32V
  • Wavelength: 940nm
  • Spectral Range: 730nm to 1100nm
  • Dark Current: 10nA
  • Operating Temperature Range: -25°C to 85°C
  • Product Status: Active
