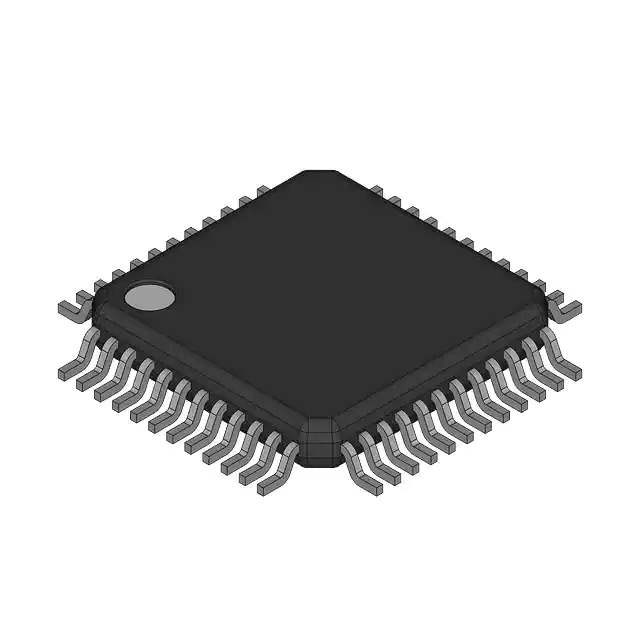

XR16C2850CM Real Image
Same model may have multiple batches, images only for reference.

XR16C2850CM

Part No XR16C2850CM
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description SERIAL I/O CONTROLLER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Mfr Exar Corporation
Package Bulk
Product Status Active
Features Internal Oscillator, Timer/Counter
Number of Channels 2, DUART
FIFO's 128 Byte
Protocol RS232, RS485
Data Rate (Max) 6.5Mbps
Voltage - Supply 2.97V ~ 5.5V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting Type Surface Mount
Package / Case 48-TQFP
Supplier Device Package 48-TQFP (7x7)
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 699534-XR16C2850CM
Ultra Librarian 3D Model Ultra Librarian XR16C2850CM CAD Model

Description

The 699534-XR16C2850CM is a UART interface integrated circuit from Exar Corporation.

  • Protocol Support: RS232, RS485
  • Number of DUART Channels: 2
  • Maximum Data Rate: 6.5Mbps
  • FIFO Size: 128-Byte
  • Features: Auto Flow Control, IrDA Encoder/Decoder, False Start Bit Detection, Modem Control
  • Voltage Supply Range: 2.97V to 5.5V
  • Mounting Type: Surface Mount
  • Package: 48-TQFP
  • Internal Oscillator: Yes
  • Timer/Counter: Yes
