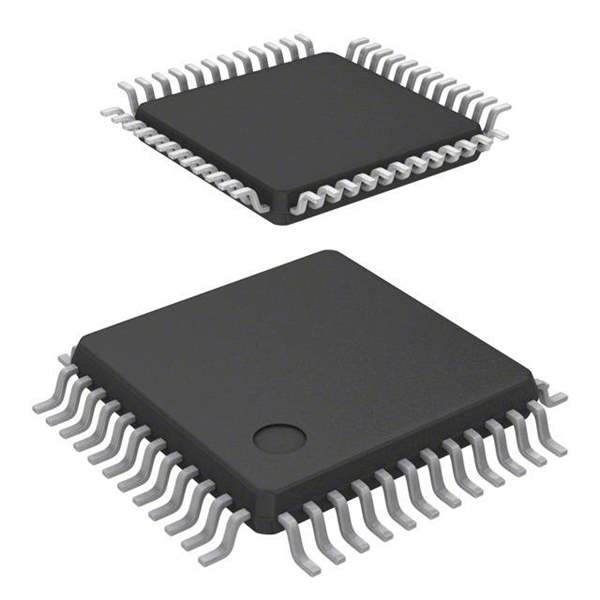

The XR16L580IM is an Octal UART (Universal Asynchronous Receiver/Transmitter) with FIFOs, manufactured by Exar Corporation. It integrates eight independent UART channels in a single chip, designed for applications requiring multiple serial communication interfaces. With features like large FIFOs and flexible interrupt management, it optimizes system performance and minimizes processor overhead.

Applications

• Multi-Port Serial Cards: Utilized in servers and workstations to provide multiple serial ports for various peripherals.
• Industrial Automation: Facilitates communication between controllers, sensors, and actuators.
• Point-of-Sale Systems: Manages serial communication with devices such as barcode scanners, receipt printers, and payment terminals.
• Network Management: Integrates into network devices to provide serial communication interfaces for configuration and diagnostics.
• Embedded Systems: Offers multiple serial communication channels for microcontroller-based systems.

Features

• Octal UART: Contains eight independent UART channels for extensive serial communication.
• 64-Byte FIFO: Each UART channel incorporates a 64-byte FIFO buffer for both transmit and receive data.
• Data Rates up to 5 Mbps: Supports high-speed serial communication for efficient data transfer.
• Automatic Hardware/Software Flow Control: Includes RTS/CTS and Xon/Xoff flow control to manage data flow.
• Programmable Baud Rate Generator: Enables flexible baud rate settings for each UART channel.
• Multi-drop Mode: Facilitates multi-drop serial communication for connecting multiple devices on a single bus.
• Interrupt Generation: Generates interrupts to signal events such as data reception, transmission completion, and error conditions.

Benefits

• High Integration: Consolidates eight UART channels into a single package, saving board space and reducing component count.
• Improved Data Throughput: Large FIFOs minimize the need for frequent processor intervention, enhancing data throughput.
• Reduced Processor Load: FIFOs and automatic flow control mechanisms lower the burden on the host processor.
• Flexible Communication Options: Programmable baud rate generator and multi-drop mode enable adaptation to diverse communication protocols.
• Reliable Data Transfer: Automatic flow control ensures dependable data transmission.

Additional Details

The XR16L580IM typically operates with a supply voltage of 3.3V or 5V and supports 5, 6, 7, and 8 data bits, with odd, even, or no parity options. A comprehensive set of control and status registers is available for each UART channel, allowing detailed configuration. The interrupt system minimizes latency, ensuring timely response to serial communication events. Datasheet provides detailed electrical characteristics, timing diagrams, and register descriptions.
