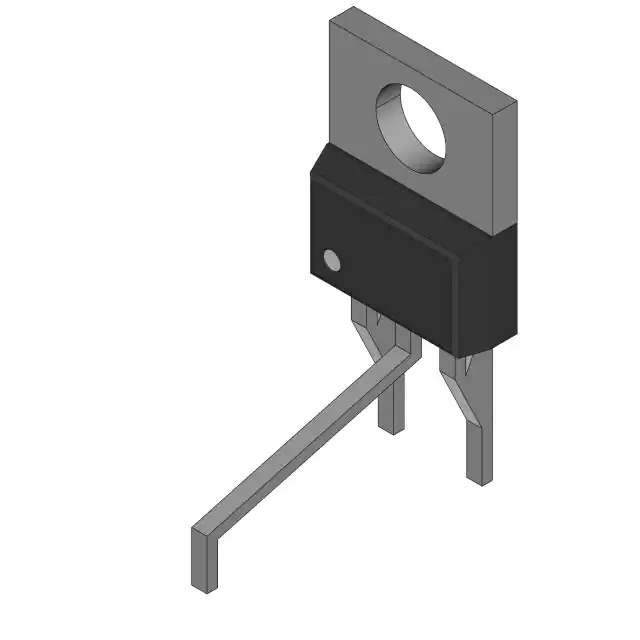

BD677AS Real Image
Same model may have multiple batches, images only for reference.

BD677AS

Part No BD677AS
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 60V 4A TO126-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 4 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 2.8V @ 40mA, 2A
Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 750 @ 2A, 3V
Power - Max 40 W
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-225AA, TO-126-3
Supplier Device Package TO-126-3
Base Product Number BD677
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 0000.00.0000
Win Source Part Number 570150-BD677AS
Ultra Librarian 3D Model Ultra Librarian BD677AS CAD Model

Description

The Fairchild/ON Semiconductor 570150-BD677AS is an NPN Darlington transistor.

  • Description: It is designed for general purpose switching and amplification applications.
  • Maximum Power Dissipation: 40W
  • Collector-Emitter Breakdown Voltage: 60V
  • Maximum Collector Current (Ic): 4A
  • Vce Saturation Voltage: 2.8V @ base current (Ib) of 40mA and a collector current (Ic) of 2A.
  • DC Current Gain (hFE): 750 @ collector current (Ic) of 2A and a collector-emitter voltage (Vce) of 3V.
  • Package: TO-225AA package
  • Operating Temperature Range: up to 150°C
  • Market Status: active product
  • Common Use: audio amplifiers, motor control, and switching circuits.
