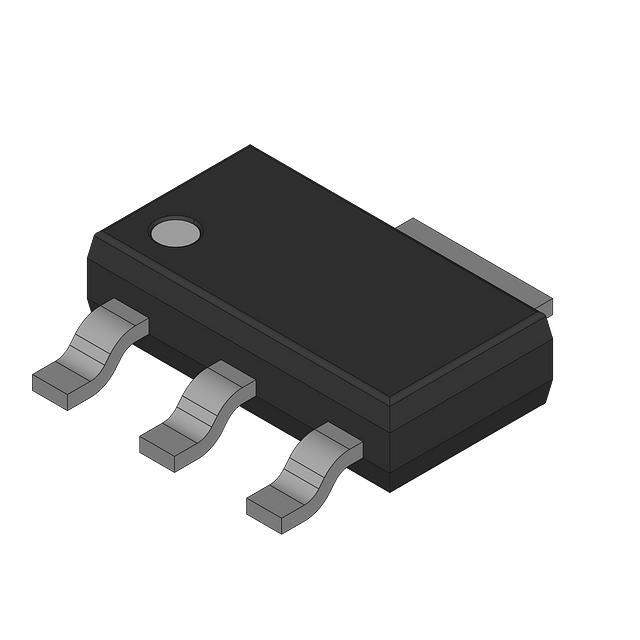

FAN1086SX Real Image
Same model may have multiple batches, images only for reference.

FAN1086SX

Part No FAN1086SX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1.5A SOT223-3
Datasheet
FAN1086SX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 7.5V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 6V
Dropout Voltage-Max 1.5V @ 1.5A
Output Current 1.5A
Operating Supply Current 13mA
PSRR 72dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 25°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.25 V to 5.5 V
Voltage - Dropout (Typical) 1.3V @ 1.5A
Mounting SMD (SMT)
Case / Package SOT-223-4
Win Source Part Number 066739-FAN1086SX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FAN1086SX CAD Model

Description

FAN1086SX Voltage Regulator

The FAN1086SX is a high-quality voltage regulator designed for efficiency and reliability. Ideal for diverse electronic projects, this component ensures stable voltage output, making it a critical choice for engineers and hobbyists alike.

  • Consumer Electronics
  • Networking Equipment
  • Telecommunication Platforms
  • Embedded Systems

Features and Benefits

  • High output accuracy for consistent performance
  • Low dropout voltage for superior energy efficiency
  • Robust thermal protection for enhanced safety
  • Compact design facilitating versatile applications

The FAN1086SX stands out due to its efficiency in low dropout operations, providing significant cost savings while maintaining optimal performance.
