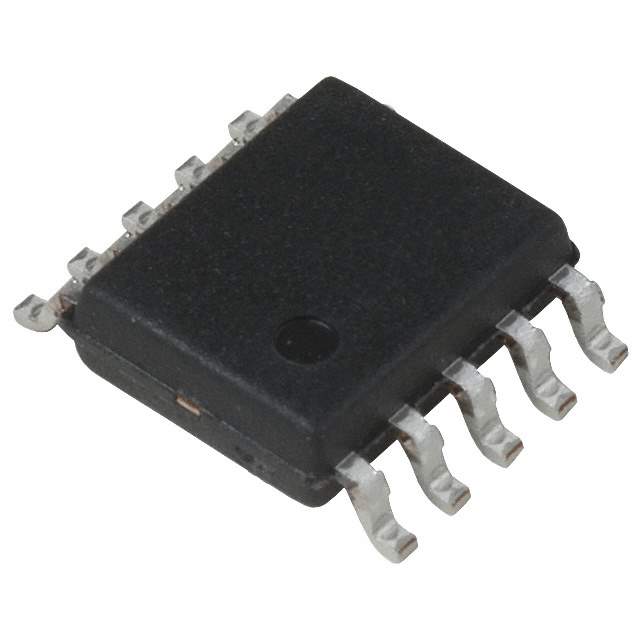

FAN7601BGX Real Image
Same model may have multiple batches, images only for reference.

FAN7601BGX

Part No FAN7601BGX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Green Current Mode PWM Controller
Datasheet
FAN7601BGX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Part Status Obsolete(EOL)
Internal Switch(s) Yes
Topology Flyback
Voltage - Start Up 12V
Supply Voltage 8 V ~ 20 V
Duty Cycle 95%
Frequency - Switching Up to 300kHz
Fault Protection Over Temperature, Over Voltage
Control Features Frequency Control, Soft Start
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 10-SOP (0.154", 3.90mm Width)
Manufacturer Package 10-SSOP
Mounting SMD
Win Source Part Number 1173452-FAN7601BGX
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name FAN7601B
Introduction Date February 01, 2009
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FAN7601BGX CAD Model

Description

The FAN7601BGX is a flyback topology integrated circuit (IC) manufactured by Fairchild/ON Semiconductor.

  • Package: 10-SOP (0.154", 3.90mm Width)
  • Mounting Type: Surface mountable
  • Operating Temperature: -40°C to 150°C (TJ)
  • Duty Cycle: 95%
  • Frequency Switching: Up to 300kHz
  • Fault Protection: Over-temperature and over-voltage
  • Supply Voltage Range: 8 V to 20 V
  • Status: Obsolete (EOL)
  • Family: FAN7601B
  • Alternative: MAX15001BEUB+T, MAX5022EUA, and MAX5022EUT+
  • Use: Integrated circuits (ICs) for electronic components
