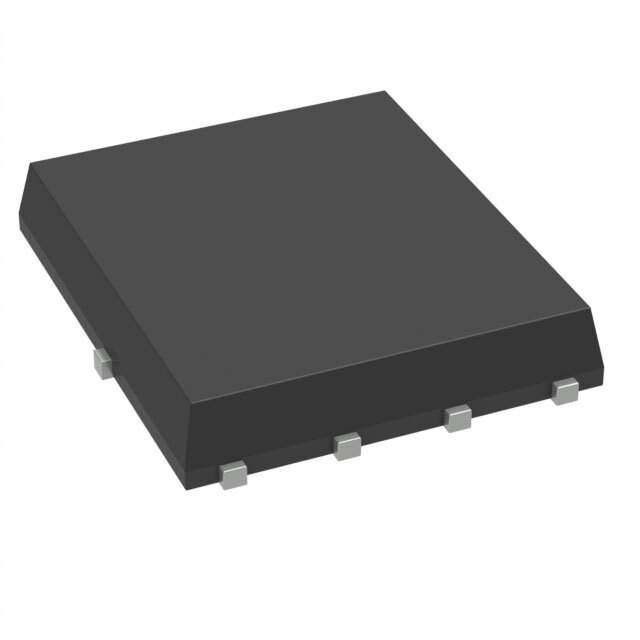

The FDMS037N08B is an N-channel type MOSFET electronic component manufactured by Fairchild/ON Semiconductor.

• Mounting: SMD
• Package: 8-PowerTDFN
• Operating Temperature: -55°C ~ 150°C (TJ)
• Current-Continuous Drain (Id) @ 25°C: 100A (Tc)
• Drain Source Voltage: 75V
• Vgs(th) (maximum) @ Id: 4.5V @ 250μA
• Gate Charge (Qg) (maximum) @ Vgs: 100nC @ 10V
• Input Capacitance (Ciss) (maximum) @ Vds: 5915pF @ 37.5V
• Power Dissipation (maximum): 830mW (Ta), 104.2W (Tc)
• Rds On (maximum) @ Id, Vgs: 3.7 mOhm @ 50A, 10V
• Estimated EOL Date: 2029
• Application: Discrete Semiconductor Products
