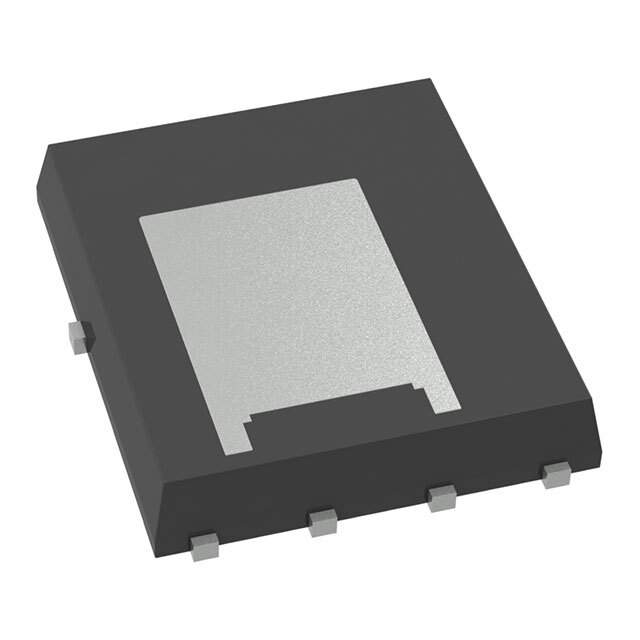

FDMS8320L

Name: FDMS8320L
Brand: Fairchild/ON Semiconductor
SKU: 591153
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FDMS8320L
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N-Channel PowerTrench® MOSFET 40 V, 100 A, 1.1 mΩ
Datasheet	FDMS8320L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Series	PowerTrench
Packaging	Reel - TR
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	40V
Current - Continuous Drain (Id) @ 25°C	36A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs(th) (Maximum) @ Id	3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	170nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	11110pF @ 20V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	2.5W (Ta), 104W (Tc)
Rds On (Maximum) @ Id, Vgs	1.1 mOhm @ 32A, 10V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Manufacturer Package	8-PQFN (5x6), Power56
Package	8-PowerTDFN
Win Source Part Number	1173841-FDMS8320L
Manufacturer Homepage	www.fairchildsemi.com
Family Name	FDMS8320L
Introduction Date	September 10, 2010
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2024
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	3k pcs
Ultra Librarian 3D Model	Ultra Librarian FDMS8320L CAD Model

Alternative Products

Description

The FDMS8320L is a PowerTrench MOSFET from Fairchild/ON Semiconductor.

Manufacturer: Fairchild/ON Semiconductor
Technology: PowerTrench MOSFET
Application: High-performance power management
Maximum Voltage: 40V
Maximum Current: 36A (Ta), 100A (Tc)
Rds On: 1.1 mOhm @ 32A, 10V
Gate Charge: 170nC @ 10V
Input Capacitance: 11110pF @ 20V
Vgs(th): 3V @ 250μA
Maximum Power Dissipation: 2.5W (Ta), 104W (Tc)
Package: 8-PowerTDFN
Compliance: Halogen-free
Supply and Demand: Limited
Popularity: Medium
Estimated EOL Date: 2024
