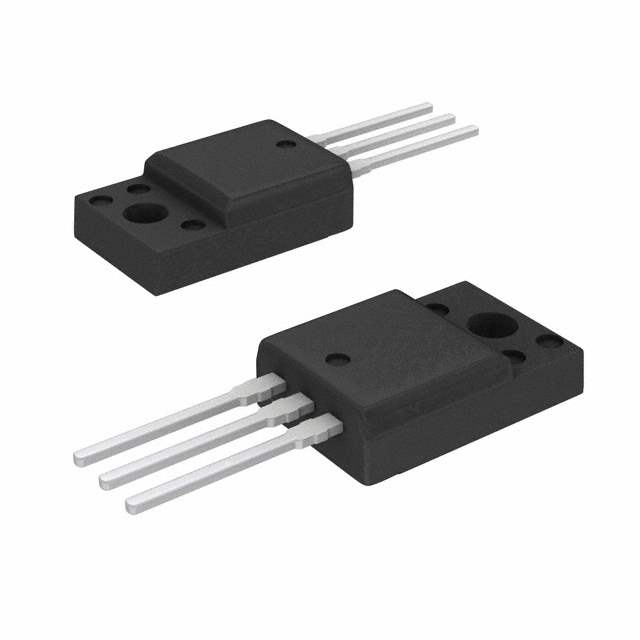

FDPF44N25T Real Image
Same model may have multiple batches, images only for reference.

FDPF44N25T

Part No FDPF44N25T
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 44A TO-220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 250V
Continuous Drain Current at 25°C 44A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 250μA
Max Gate Charge 61nC @ 10V
Max Input Capacitance 2870pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 38W (Tc)
Maximum Rds On at Id,Vgs 69 mOhm @ 22A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220F
Dimension TO-220-3 Full Pack
Win Source Part Number 127214-FDPF44N25T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FDPF44N25T CAD Model

Description

The Fairchild/ON Semiconductor FDPF44N25T is a MOSFET transistor.

  • Polarity: N-channel
  • Maximum Power Dissipation: 38W (Tc)
  • Package: TO-220F
  • Drain-Source Breakdown Voltage: 250V
  • Continuous Drain Current: 44A (Tc)
  • Gate-Source Threshold Voltage: 5V @ 250μA
  • Maximum Gate Charge: 61nC @ 10V
  • Maximum Input Capacitance: 2870pF @ 25V
  • Applications: Power management applications and industrial settings
