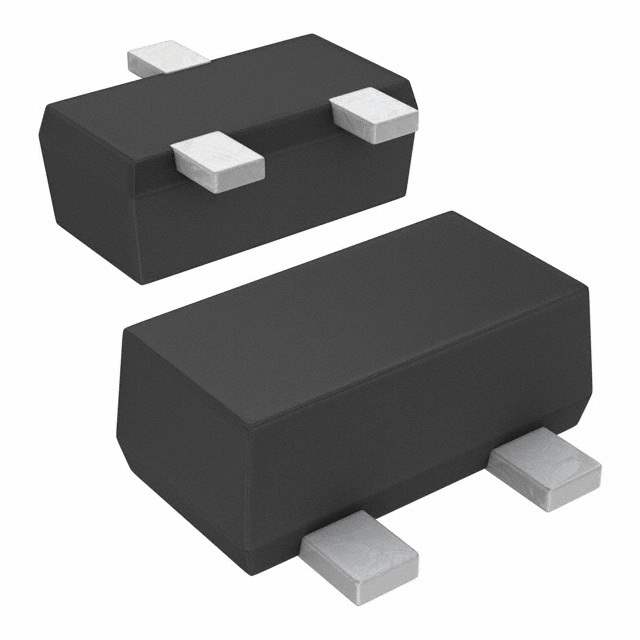

FDY102PZ Real Image
Same model may have multiple batches, images only for reference.

FDY102PZ

Part No FDY102PZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 0.83A SC89-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 830mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 3.1nC @ 4.5V
Max Input Capacitance 135pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 625mW (Ta)
Maximum Rds On at Id,Vgs 500 mOhm @ 830mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-89-3
Dimension SC-89, SOT-490
Win Source Part Number 127200-FDY102PZ
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDY102PZ CAD Model

Description

The Fairchild/ON Semiconductor 127200-FDY102PZ is a P-Channel MOSFET designed for use in industrial power management applications.

  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
  • Maximum Power Dissipation: 625mW (Ta)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 830mA (Ta) @ 25°C
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 3.1nC @ 4.5V
  • Maximum Input Capacitance: 135pF @ 10V
  • Maximum Rds On: 500 mOhm @ 830mA, 4.5V
  • Supply and Demand Status: Balanced
  • Quantity per Package: 3,000 pcs
