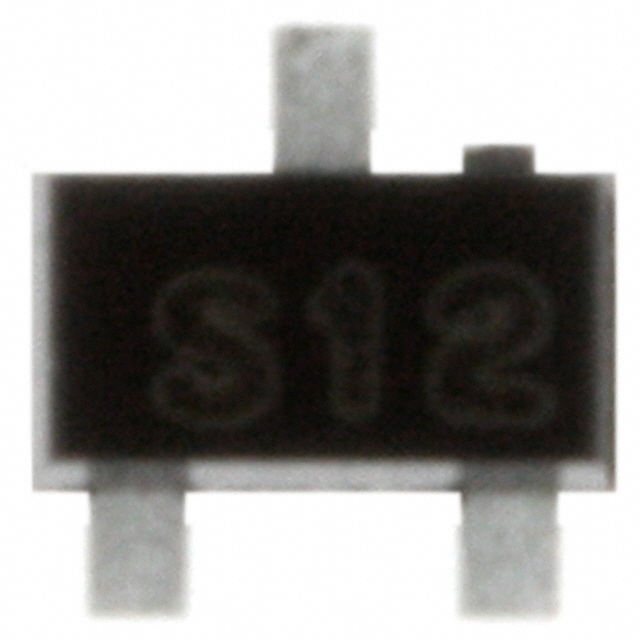

Same model may have multiple batches, images only for reference.

FJY3012R

Name: FJY3012R
Brand: Fairchild/ON Semiconductor
SKU: 130836
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	FJY3012R
Manufacturer	Fairchild/ON Semiconductor
Catalog	Transistors (BJT) - Single, Pre - Biased
Description	TRANS PREBIAS NPN 200MW SOT523F
Datasheet	FJY3012R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Fairchild/ON Semiconductor
Packaging	Reel - TR
Status	Obsolete(EOL)
Transistor Polarity	NPN - Pre-Biased
Maximum Current Collector	100mA
VCEO Maximum Collector-Emitter Breakdown Voltage	40V
Resistor - Base (R1) (Ohms)	47k
Typical Gain (hFE) (Min)	100 @ 1mA, 5V
Max Vce (sat)	300mV @ 1mA, 10mA
Collector Cut-off Current(Max)	100nA (ICBO)
Frequency - Transition	250MHz
Maximum Power Dissipation	200mW
Mounting	SMD (SMT)
Case / Package	SOT-523F
Win Source Part Number	109078-FJY3012R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian FJY3012R CAD Model

Alternative Products

Description

The Fairchild/ON Semiconductor FJY3012R is an NPN pre-biased transistor.

Maximum Collector-Emitter Breakdown Voltage: 40V
Maximum Current Collector: 100mA
Typical Gain (hFE): 100 @ 1mA and 5V
Package: SOT-523F
Maximum Power Dissipation: 200mW
Frequency-Transition: 250MHz
Collector Cut-off Current (Max): 100nA (ICBO)
Resistor-Base (R1): 47k ohms
Resistor-Emitter Base (R2): Not specified
Category: Discrete Semiconductor Products
Status: Obsolete (EOL)
Supply and Demand: Balanced
