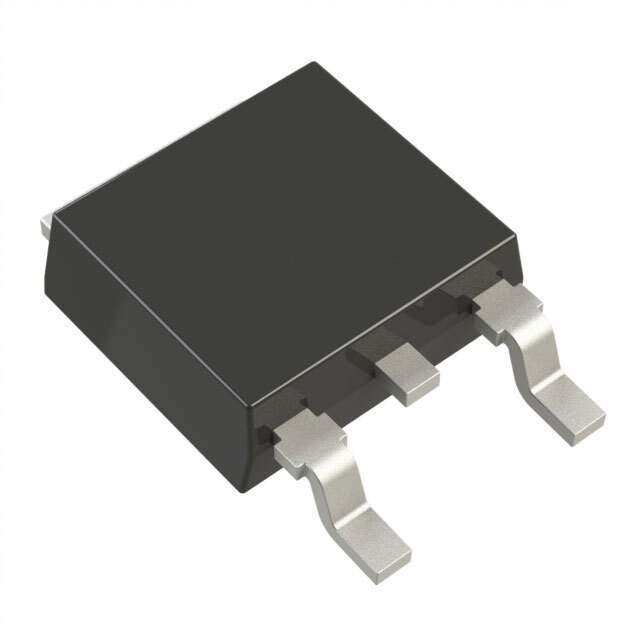

Same model may have multiple batches, images only for reference.
DMT10H009LK3-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMT10H009LK3-13

Part No DMT10H009LK3-13
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET BVDSS: 61V~100V TO252 T&R
Datasheet
DMT10H009LK3-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products> Transistors FETs, MOSFETs Single FETs, MOSFETs
Part Status Active
Technology MOSFET (Metal Oxide)
FET Type N-Channel
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 90A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds 2309 pF @ 50 V
Win Source Part Number WS1310147-DMT10H009LK3-13
Ultra Librarian 3D Model Ultra Librarian DMT10H009LK3-13 CAD Model

Description

This new generation MOSFET features low on-resistance and fast switching, making it ideal for high efficiency power management applications.
