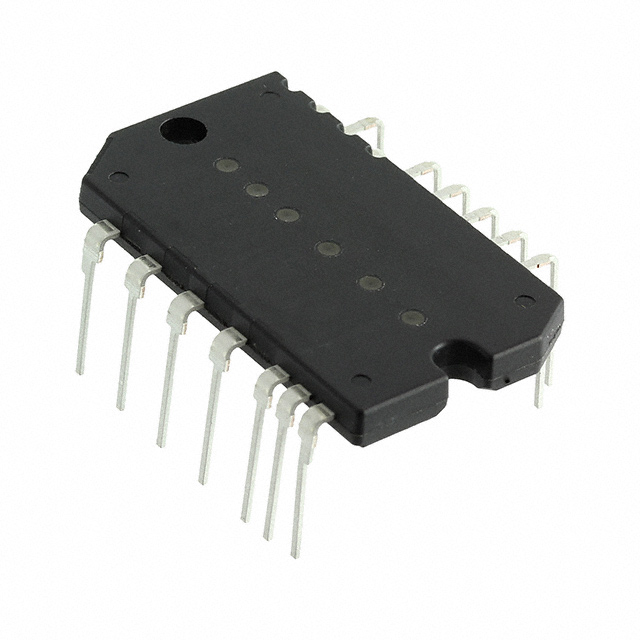

The FNA51560T3 is a power driver module manufactured by Fairchild/ON Semiconductor. This module integrates multiple power semiconductor devices and control circuitry into a single package, providing a compact and efficient solution for driving inductive loads such as motors and actuators. The module is designed for applications requiring high power and reliable performance.

Applications

• Industrial Motor Drives
• Servo Motors
• Robotics
• Actuators
• Power Supplies
• Inverters

Features

• Integrated Power Semiconductors
• Under-Voltage Lockout (UVLO)
• Over-Current Protection (OCP)
• Over-Temperature Protection (OTP)
• Short-Circuit Protection (SCP)
• Bootstrap Diode for High-Side Gate Drive
• Low Saturation Voltage
• Isolated Baseplate
• Compact Package

Benefits

• Simplifies power driver design, reducing component count and board space.
• Provides reliable protection against fault conditions, enhancing system robustness.
• Enables efficient power conversion, minimizing energy losses.
• Reduces electromagnetic interference (EMI) due to integrated design.
• Offers high power density for space-constrained applications.
• Enhances system reliability through robust protection features.
• Facilitates easy integration into various power control systems.

Technical Specifications

The FNA51560T3 typically features a voltage rating of 600V and a current rating of 15A. It integrates IGBTs and diodes with fast recovery characteristics. It includes comprehensive protection features, and its isolated baseplate facilitates efficient heat dissipation. Consult the datasheet for precise voltage, current, and temperature ratings as well as detailed switching characteristics.
