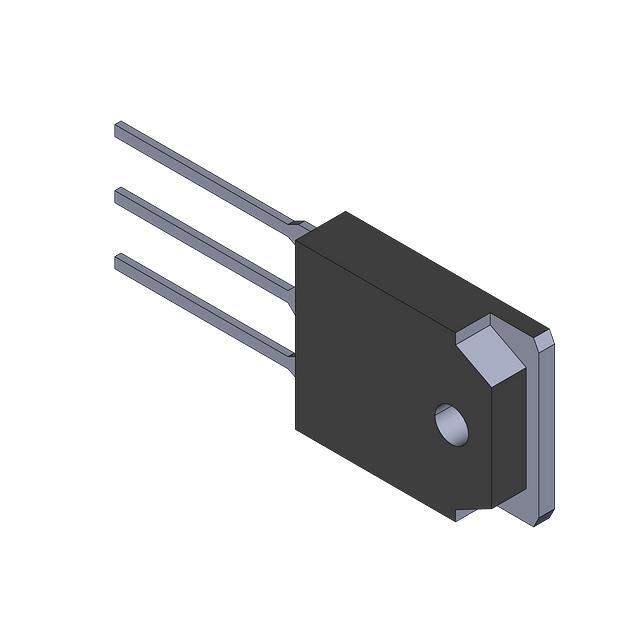

FQA13N50CF Real Image
Same model may have multiple batches, images only for reference.

FQA13N50CF

Part No FQA13N50CF
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 500V 15A TO-3P / Trans MOSFET N-CH 500V 15A 3-Pin(3+Tab) TO-3P Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 500V
Continuous Drain Current at 25°C 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 56nC @ 10V
Max Input Capacitance 2055pF @ 25V
Maximum Gate-Source Voltage ±30V
Power Dissipation (Max) 218W (Tc)
Maximum Rds On at Id,Vgs 480 mOhm @ 7.5A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-3PN
Dimension TO-3P-3, SC-65-3
Win Source Part Number 117620-FQA13N50CF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 450
Family Name FQA13N50CF
Introduction Date March 18, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FQA13N50CF CAD Model

Description

The Fairchild/ON Semiconductor FQA13N50CF is an N-channel MOSFET.

  • Drain-Source Breakdown Voltage: 500V
  • Continuous Drain Current: 15A (Tc)
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 56nC @ 10V
  • Maximum Input Capacitance: 2055pF @ 25V
  • Maximum Rds On: 480 mOhm @ 7.5A, 10V
  • Package: TO-3PN
  • Popularity: High
  • Supply and Demand: Limited
  • Pieces per Package: 450
