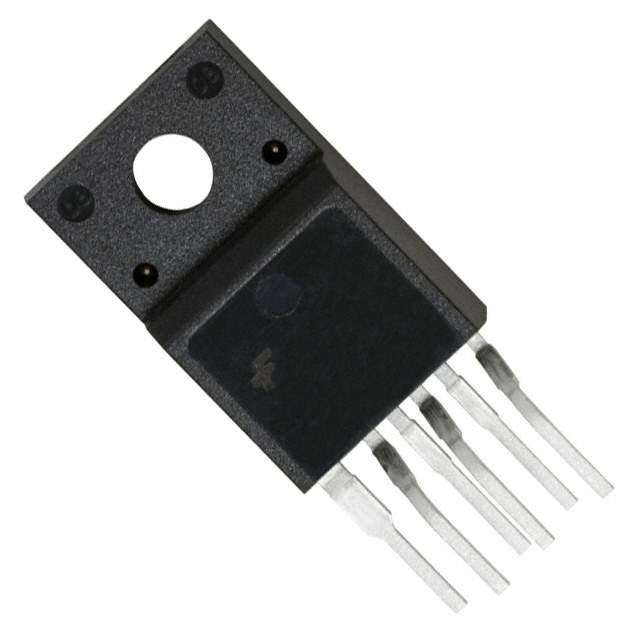

FSGM0565RBWDTU Real Image
Same model may have multiple batches, images only for reference.

FSGM0565RBWDTU

Part No FSGM0565RBWDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Green-Mode Fairchild Power Switch
Datasheet
FSGM0565RBWDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series FPS
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage 7.5 V ~ 26 V
Duty Cycle 70%
Frequency - Switching 66kHz
Power (Watts) 80W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Operating Temperature Range -40°C ~ 125°C (TJ)
Package TO-220-6 Full Pack, Formed Leads
Manufacturer Package TO-220F-6L (Forming)
Mounting Style Through Hole
Win Source Part Number 1175956-FSGM0565RBWDTU
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Family Name FSGM0565RB
Introduction Date March 11, 2010
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian FSGM0565RBWDTU CAD Model

Description

The FSGM0565RBWDTU is a Flyback Topology integrated circuit (IC) designed for AC-DC power supply applications.

  • Topology: Flyback
  • Output: Isolated
  • Switch: Internal
  • Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
  • Voltage Breakdown: 650V
  • Power Rating: 80W
  • Duty Cycle: 70%
  • Switching Frequency: 66kHz
  • Operating Temperature: -40°C to 125°C
  • Package: TO-220-6 Full Pack, Formed Leads
  • Voltage Supply: 7.5V to 26V
