Same model may have multiple batches, images only for reference.

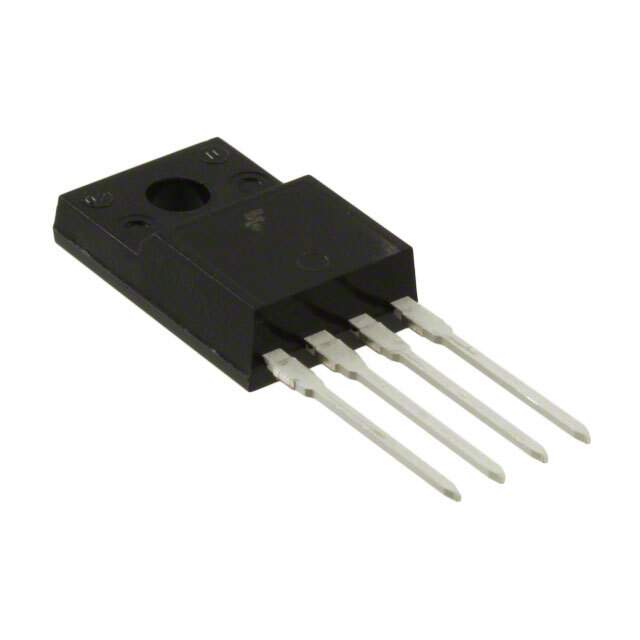

KA278R09CYDTU Real Image
Same model may have multiple batches, images only for reference.

KA278R09CYDTU

Part No KA278R09CYDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 2A TO220FL / LDO Regulator Pos 9V 2A 4-Pin(4+Tab) TO-220F Rail
Datasheet
KA278R09CYDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 35V
Output Voltage 9V
Voltage Dropout (Maximum) 0.5V @ 2A
Output Current 2A
Operating Supply Current 10mA
Protection Features Over Current, Over Temperature, Over Voltage, Short Circuit
Operating Temperature Range -20°C ~ 80°C
Mounting Style Through Hole
Package TO-220-4 Full Pack (Formed Leads)
Manufacturer Package TO-220F-4L (Forming)
Win Source Part Number 777955-KA278R09CYDTU
Popularity Medium
Supply and Demand Status Balance
Family Name KA278R09C
Introduction Date August 26, 2003
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian KA278R09CYDTU CAD Model

Description

The Fairchild/ON Semiconductor KA278R09CYDTU is a fixed output voltage regulator designed and manufactured by Fairchild/ON Semiconductor.

  • Package: TO-220-4 Full Pack (Formed Leads)
  • Mounting Type: Through Hole
  • Output Voltage: 9V (Single)
  • Output Current: 2A
  • Protection Features: Over Current, Over Temperature, Over Voltage, Short Circuit
  • Voltage Input MAX: 35V
  • Voltage Dropout: 0.5V @ 2A (Maximum)
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
