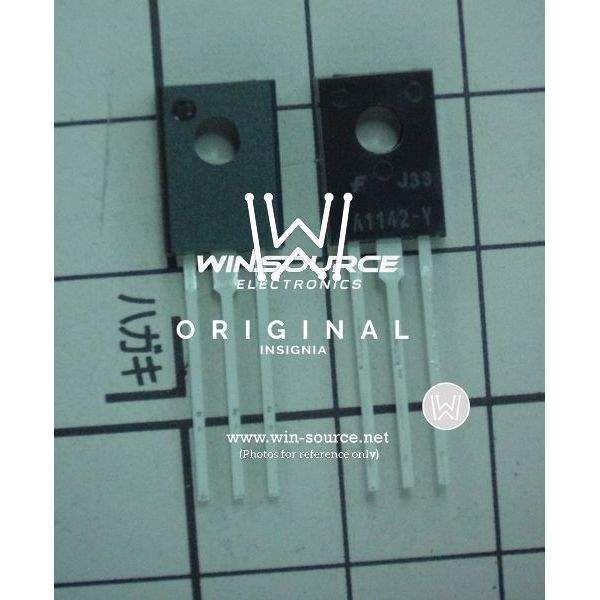

KSA1142YSTU Fairchild/ON Semiconductor KSA1142YSTU Real Image KSA1142YSTU real image
Same model may have multiple batches, images only for reference.
KSA1142YSTU Fairchild/ON Semiconductor KSA1142YSTU Real Image KSA1142YSTU real image
KSA1142YSTU Fairchild/ON Semiconductor KSA1142YSTU Real Image KSA1142YSTU real image
Same model may have multiple batches, images only for reference.

KSA1142YSTU

Part No KSA1142YSTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 180V 0.1A TO-126
Datasheet
KSA1142YSTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 180V
Max Vce (sat) 500mV @ 5mA, 50mA
Collector Cut-off Current(Max) 1μA (ICBO)
Typical Gain (hFE) (Min) 160 @ 10mA, 5V
Maximum Power Dissipation 1.2W
Frequency - Transition 180MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-126-3
Win Source Part Number 1010930-KSA1142YSTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name KSA1142Y
Introduction Date November 14, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Quantity per package 60
Ultra Librarian 3D Model Ultra Librarian KSA1142YSTU CAD Model

Description

The KSA1142YSTU is a PNP transistor from Fairchild/ON Semiconductor.

  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 180V
  • Frequency Transition: 180MHz
  • Typical Gain (hFE) (Min): 160 @ 10mA, 5V
  • Mounting Type: through-hole
  • Package: TO-126-3
  • Maximum Power Dissipation: 1.2W
  • Status: obsolete (EOL)
  • Package Quantity: 60 pcs
