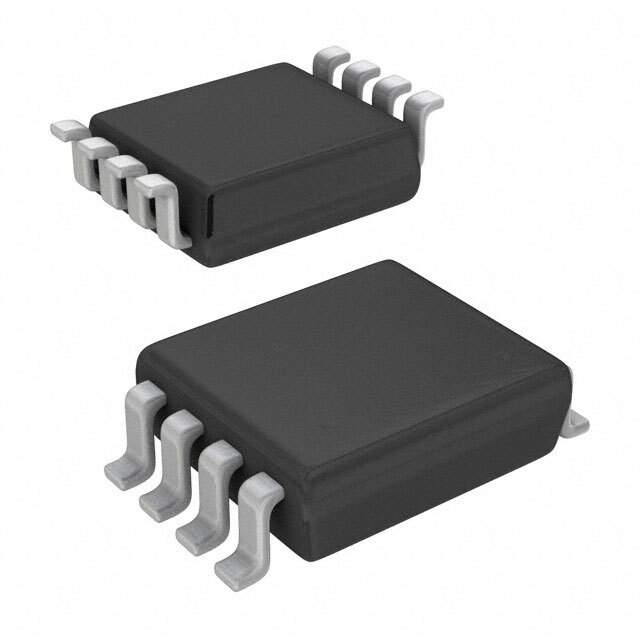

NC7WV125K8X Real Image
Same model may have multiple batches, images only for reference.

NC7WV125K8X

Part No NC7WV125K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFF TRI-ST ULP-A US8
Datasheet
NC7WV125K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 24mA, 24mA
Supply Voltage - Operating 0.9 V to 3.6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package US8
Win Source Part Number 1081823-NC7WV125K8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WV125K8X CAD Model

Description

The NC7WV125K8X is a dual buffer with Schmitt trigger inputs that is manufactured by Fairchild/ON Semiconductor.

  • Logic Type: Buffer, Non-Inverting
  • Output Type: Push-Pull
  • Popularity Rating: Medium
  • Supply and Demand: Balance
