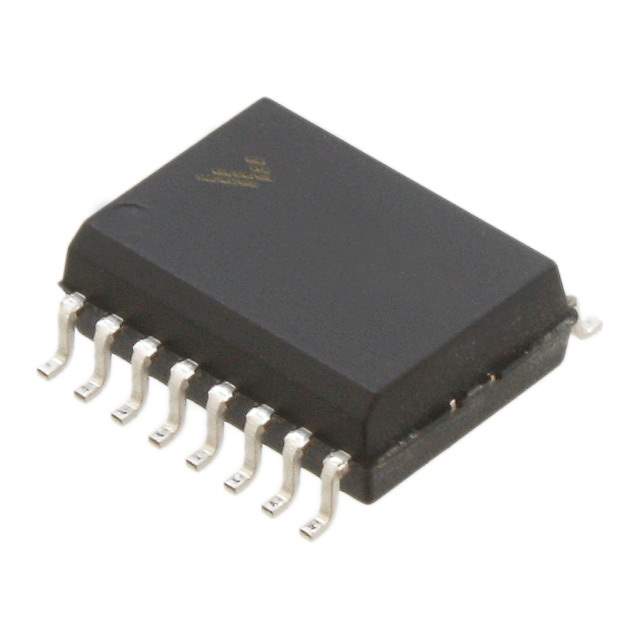

MC68HC705KJ1CDW Real Image
Same model may have multiple batches, images only for reference.

MC68HC705KJ1CDW

Part No MC68HC705KJ1CDW
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 1.2KB OTP 16SOIC
Datasheet
MC68HC705KJ1CDW Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor HC05
Part Core Size 8-Bit
Speed(Frequency) 4MHz
Number of I/O 10
Program Memory Size 1.2KB (1.2K x 8)
Program Memory Type OTP
Data RAM Size 64 x 8
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-SOIC
Win Source Part Number 041485-MC68HC705KJ1CDW
Ultra Librarian 3D Model Ultra Librarian MC68HC705KJ1CDW CAD Model

Description

The NXP MC68HC705KJ1CDW is an 8-bit microcontroller that comes with 1.2KB OTP program memory.

  • Manufacturer: NXP
  • Program Memory: 1.2KB OTP
  • Core Processor: HC05
  • I/O Ports: 10
  • Package: 16-SOIC
  • Speed: 4MHz
  • Operating Temperature: -40°C to 85°C (TA)
  • Supply Voltage: 3 V to 5.5 V
  • Application: Integrated Circuits
  • Status: Obsolete (EOL)
