Same model may have multiple batches, images only for reference.

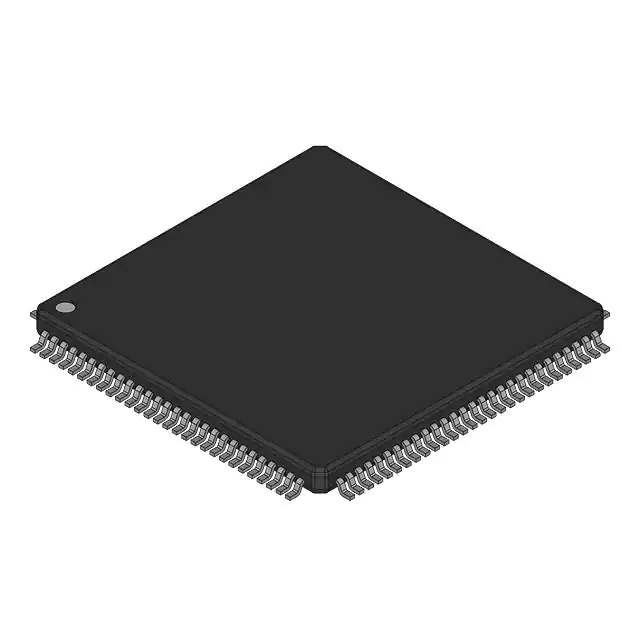

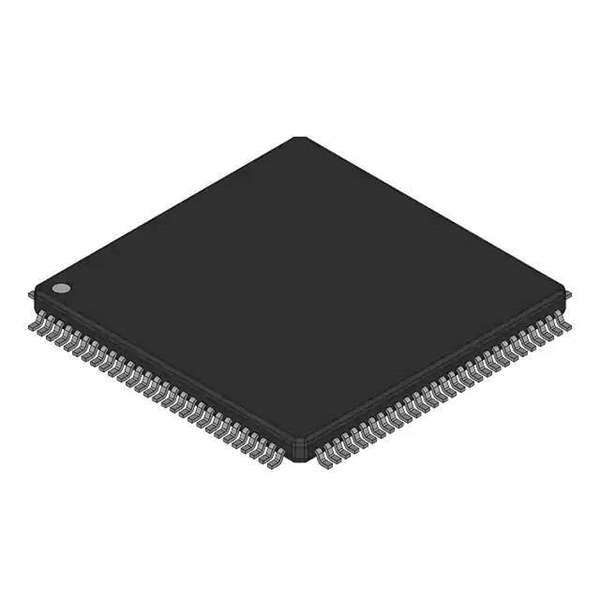

MC9SDT128BMPVR2 Real Image
Same model may have multiple batches, images only for reference.

MC9SDT128BMPVR2

Part No MC9SDT128BMPVR2
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description MCU 16 BIT HCS12 CISC 128KB FLAS / * Microcontroller IC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor
Series *
Package Bulk
Base Product Number MC9SDT128
Standard Package 248
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1345827-MC9SDT128BMPVR2
Ultra Librarian 3D Model Ultra Librarian MC9SDT128BMPVR2 CAD Model

Description

The MC9SDT128BMPVR2 is a microcontroller from Freescale Semiconductor.

  • Core Processor: 32-bit Single-Core ARM Cortex-M4
  • Clock Speed: 180MHz
  • Program Memory Size: 1MB (1M x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 4K x 8
  • RAM Size: 256K x 8
  • I/O Pins: 116
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG
  • Peripherals: DMA, I2S, LVD, POR, PWM, WDT
  • Supply Voltage: 1.71V to 3.6V
  • Packaging: Bulk
  • Temperature Range: -40°C to 105°C
