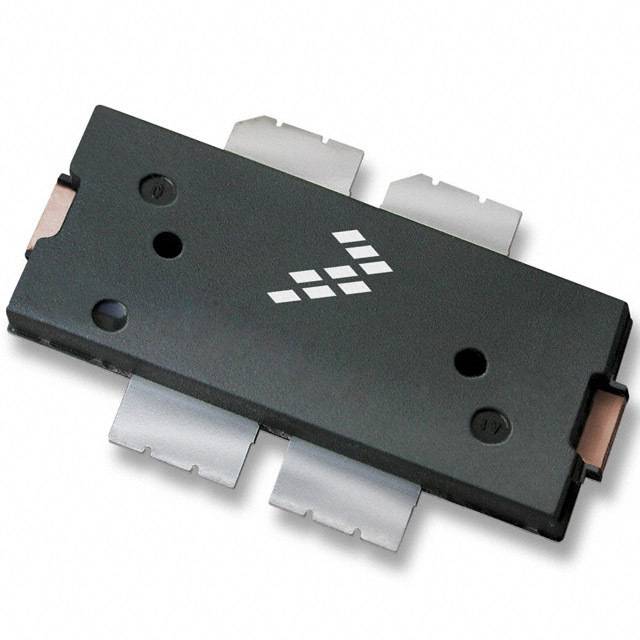

MRF7S19120NR1 Freescale Semiconductor - NXP
Same model may have multiple batches, images only for reference.

MRF7S19120NR1

Part No MRF7S19120NR1
Manufacturer Freescale Semiconductor - NXP
Catalog Transistors - FETs, MOSFETs - RF
Description FET RF 65V 1.99GHZ TO-270-4
Datasheet
MRF7S19120NR1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer NXP
Packaging Reel - TR
Status Not For New Designs
Transistor Polarity LDMOS
Frequency 1.99GHz
Gain 18dB
Voltage - Test 28V
Current - Test 1.2A
Power - Output 36W
Voltage Rating 65V
Case / Package TO-270 WB-4
Win Source Part Number 059525-MRF7S19120NR1
Ultra Librarian 3D Model Ultra Librarian MRF7S19120NR1 CAD Model

Description

The NXP MRF7S19120NR1 is an LDMOS transistor designed for use in high-power RF amplifier applications.

  • Voltage Rating: 65V
  • Frequency: 1.99GHz
  • Power Output: 36W
  • Gain: 18dB
  • Package: TO-270 WB-4 package
  • Note: not for new designs
