2301

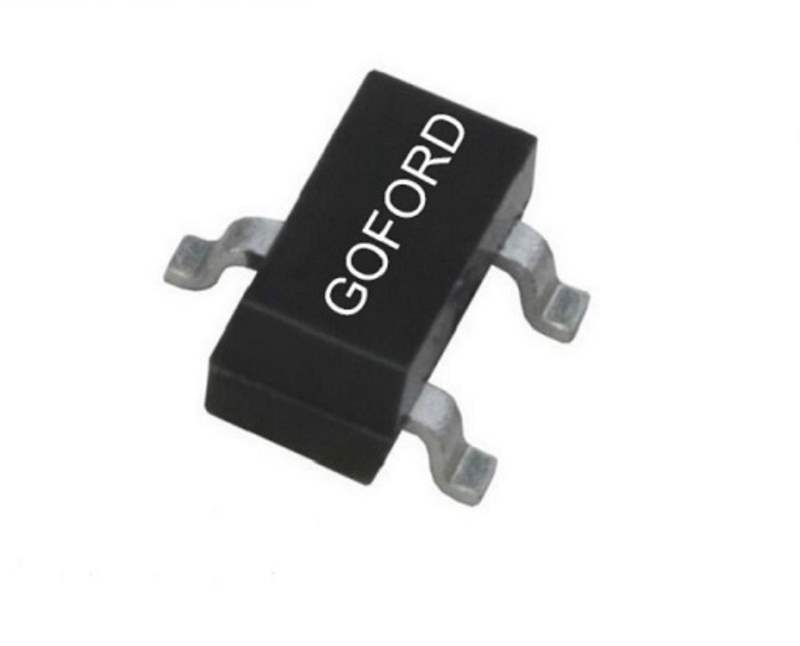

Name: 2301
Brand: Goford Semiconductor
SKU: 540371
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2301
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	P20V,RD(MAX)<[email protected],RD(MAX)<8
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Package	Tape & Reel
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	56mOhm @ 1.7A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 2.5 V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	405 pF @ 10 V
Power Dissipation (Max)	1W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
Standard Package	3,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	540371-2301
Package	Retail Package
Tool Type	Remote Particle Counter
For Use With/Related Products	Air Quality
Series	*
Package	Bag
Type	Knurled, Straight
Color	Black
Package	Cut Tape (CT)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate Charge (Qg) (Max) @ Vgs	8.5 nC @ 2.5 V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	640 pF @ 10 V
Power Dissipation (Max)	1W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Ultra Librarian 3D Model	Ultra Librarian 2301 CAD Model

Alternative Products

Description

The Goford Semiconductor MOSFET (Metal Oxide) transistor is a high-quality electronic component designed for various applications.

Transistor Type: P-Channel
Drain to Source Voltage (Vdss): 20V
Continuous Drain Current (Id): 3A @ 25°C
On-Resistance (Rds On): 56mOhm
Gate-Source Threshold Voltage (Vgs(th)): 900mV
Power Dissipation: 1W
Mounting: Surface Mountable
Package: TO-236-3, SC-59, SOT-23-3
Supplier Device Package: SOT-23
Gate Charge (Qg): 12 nC @ 2.5V
Input Capacitance (Ciss): 405 pF @ 10V
MSL Level: 3 (168 Hours)
REACH Status: Unaffected
Manufacturer: Goford Semiconductor
