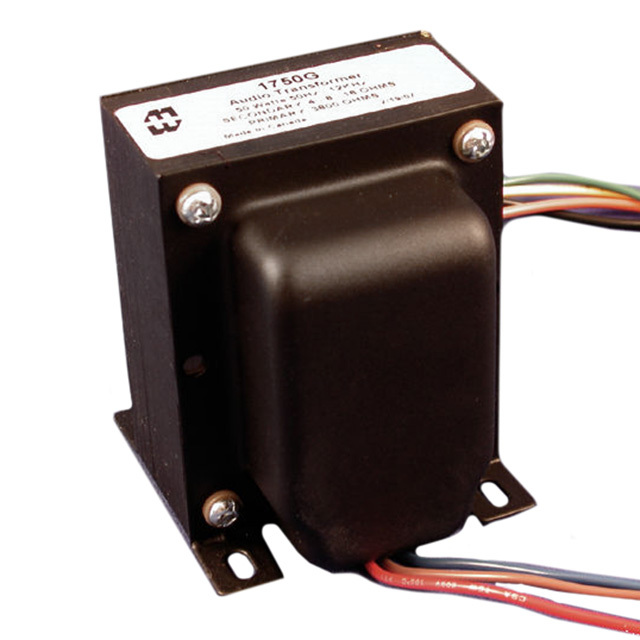

Same model may have multiple batches, images only for reference.
1750JA Hammond Manufacturing – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1750JA

Part No 1750JA
Manufacturer Hammond Manufacturing
Catalog Audio Transformers
Description XFMR 4.25KCT / 4, 8 CHAS MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Impedance - Primary (Ohms) 4.25kCT
Impedance - Secondary (Ohms) 4, 8
DC Resistance (DCR) - Primary 82Ohm, 108.3Ohm
DC Resistance (DCR) - Secondary 253mOhm, 462mOhm
Frequency Range 70Hz ~ 15kHz
Frequency Response ±1dB
Voltage - Isolation 2000V @ 1 Second
Power Level 40W
Mounting Type Chassis Mount
Size / Dimension 2.500" L x 3.150" W (63.50mm x 80.01mm)
Height - Seated (Max) 3.319" (84.30mm)
Termination Style Wire Leads
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1510982-1750JA
Ultra Librarian 3D Model Ultra Librarian 1750JA CAD Model
