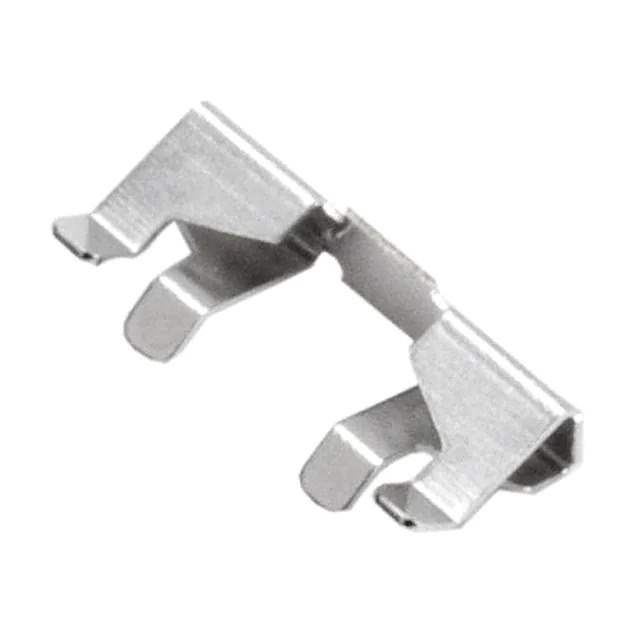

S1721-46R Real Image
Same model may have multiple batches, images only for reference.

S1721-46R

Part No S1721-46R
Manufacturer Harwin Inc.
Catalog RFI and EMI - Contacts, Fingerstock and Gaskets
Description RFI SHIELD CLIP MINI TIN SMD
Datasheet
S1721-46R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RFI and EMI - Contacts, Fingerstock and Gaskets
Mfr Harwin Inc.
Series EZ BoardWare
Package Tape & Reel
Product Status Active
Type Shield Clip
Width 0.042" (1.07mm)
Length 0.207" (5.25mm)
Height 0.088" (2.23mm)
Material Stainless Steel
Plating Tin
Plating - Thickness 118.11µin (3.00µm)
Attachment Method Solder
Temperature Range - Operating -40°C ~ 125°C
Base Product Number S1721
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 748923-S1721-46R
Ultra Librarian 3D Model Ultra Librarian S1721-46R CAD Model

Description

The S1721 shield clip is a versatile component used in RF and wireless applications to provide electromagnetic interference (EMI) shielding.

  • Material: stainless steel with a tin plating
  • Length: 0.207"
  • Height: 0.088"
  • Width: 0.042"
  • Attachment: solder
  • Temperature Range: -40°C to 125°C
