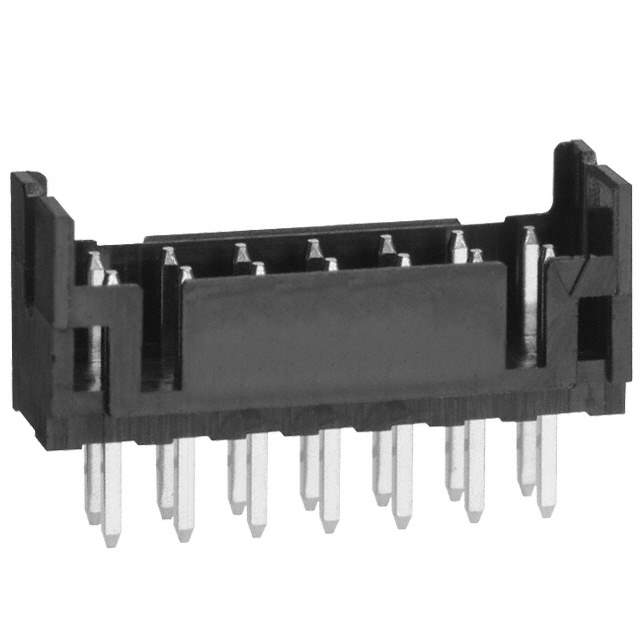

Same model may have multiple batches, images only for reference.
DF11-14DP-2DSA(24) Real Image
Same model may have multiple batches, images only for reference.

DF11-14DP-2DSA(24)

Part No DF11-14DP-2DSA(24)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Datasheet
DF11-14DP-2DSA(24) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF11
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.118" (3.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.299" (7.60mm)
Insulation Height 0.260" (6.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 250V
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Base Product Number DF11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names DF1114DP2DSA24,*DF11-14DP-2DSA(24),543-0522-5-24,H10234
Standard Package 30
Win Source Part Number 1014990-DF11-14DP-2DSA(24)
Ultra Librarian 3D Model Ultra Librarian DF11-14DP-2DSA(24) CAD Model

Description

The Hirose Electric Co Ltd DF11-14DP-2DSA(24) rectangular connector header is a high-quality male pin connector designed for board-to-board or cable applications.

  • Positions: 14
  • Fastening Type: detent lock
  • Mounting Type: through-hole
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: tin
  • Contact Finish Thickness-Mating: 39.4µin (1.00µm)
  • Contact Material: brass
  • Voltage Rating: 250V
  • Insulation Material: polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 85°C
