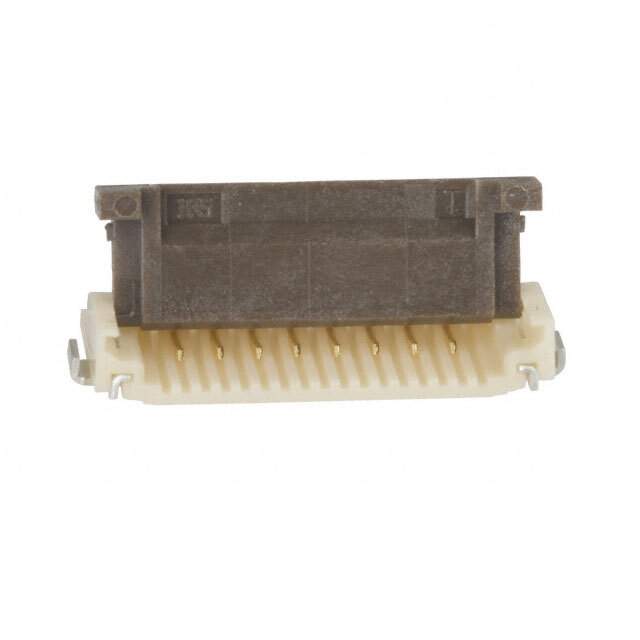

FH12-8S-1SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-8S-1SH(55)

Part No FH12-8S-1SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 1.00MM R/A / Conn FFC/FPC Connector SKT 8 POS 1mm Solder RA SMD T/R
Datasheet
FH12-8S-1SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH12
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 774554-FH12-8S-1SH(55)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name FH12
Introduction Date September 30, 1998
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH12-8S-1SH(55) CAD Model

Description

The FH12-8S-1SH(55) is a 8-position surface mount right angle connector from Hirose Electric Co Ltd.

  • Series: FH12
  • Positions: 8
  • Pitch: 0.039" (1.00mm)
  • Locking Feature: Flip Lock
  • Termination: Solder
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Housing Material: Polyamide (PA), Nylon
  • Contact Material: Phosphor Bronze
  • FFC/FPC Compatibility: FFC, FPC
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C ~ 85°C
  • Package: Reel
  • Quantity per Package: 2k pcs
