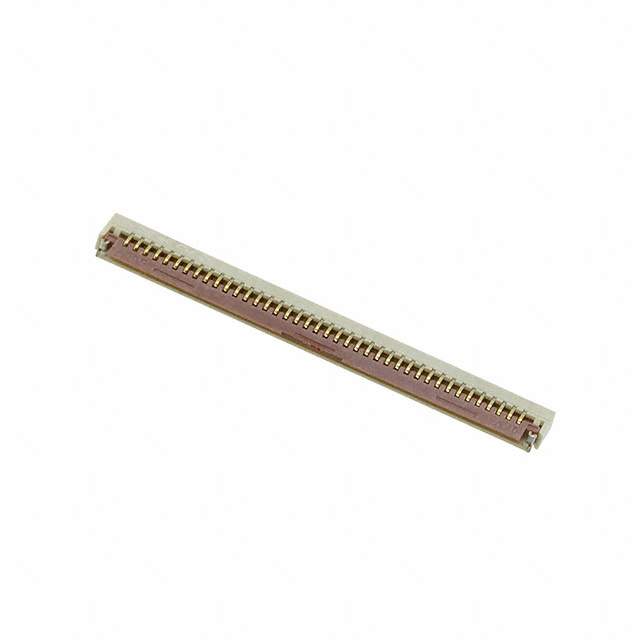

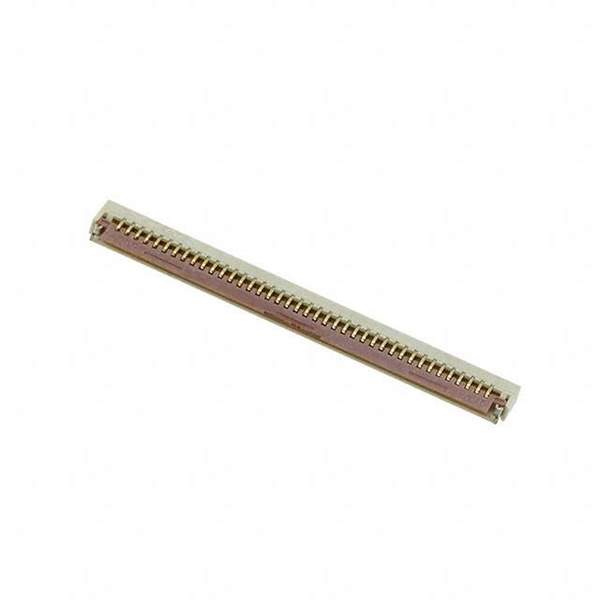

FH19C-40S-0.5SH(10) Real Image
Same model may have multiple batches, images only for reference.

FH19C-40S-0.5SH(10)

Part No FH19C-40S-0.5SH(10)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 40POS 0.50MM R/A
Datasheet
FH19C-40S-0.5SH(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH19C
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name FH19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number FH19C-40S-0.5SH(10)-ND, H125821CT, H125821TR, 580-0416-8-10, H125821DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871819-FH19C-40S-0.5SH(10)
Ultra Librarian 3D Model Ultra Librarian FH19C-40S-0.5SH(10) CAD Model

Description

The FH19C series connector from Hirose Electric Co Ltd is a 40 position FFC, FPC connector with bottom 0.020" (0.50mm) surface mount and right angle mounting.

  • Positions: 40
  • Connector Type: FFC, FPC
  • Mounting: Surface Mount, Right Angle
  • Pitch: 0.020" (0.50mm)
  • Operating Temperature: -55°C ~ 85°C
  • Series: FH19C
  • Family: FH19
  • Category: Connectors
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: Reel
  • Quantity per Package: 5000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4051
  • Other Part Numbers: FH19C-40S-0.5SH(10)-ND, H125821CT, H125821TR, 580-0416-8-10, H125821DKR
