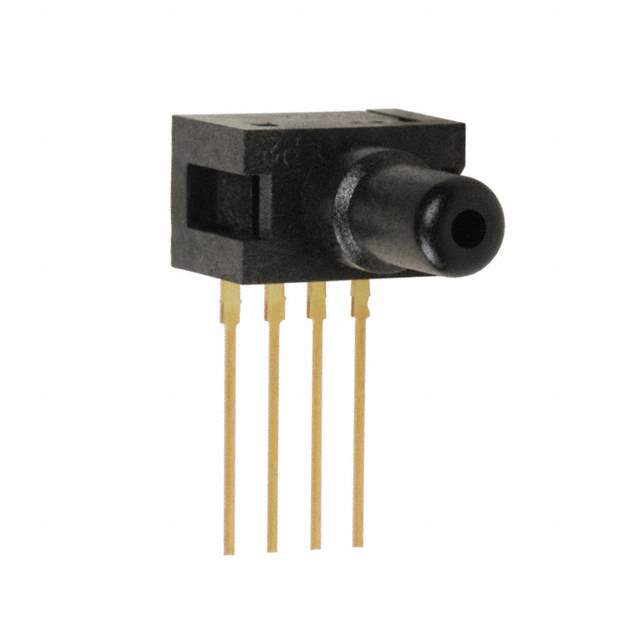

26PCCFA6G Real Image
Same model may have multiple batches, images only for reference.

26PCCFA6G

Part No 26PCCFA6G
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description Interactive Catalog Replaces Catalog Pages | SENSOR 15PSI GAUGE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Applications Board Mount
Pressure Type Compound
Operating Pressure ±15PSI (±103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (10V)
Accuracy ±0.5%
Supply Voltage (V) 2.5V ~ 16V
Port Size Male - 0.2" (5mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±45PSI (±310.26kPa)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 4-SIP Module
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1123426-26PCCFA6G
Manufacturer Homepage honeywell.com/Pages/Home.aspx
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26PCCFA6G CAD Model

Description

The Honeywell 26PCCFA6G pressure sensor is a high-accuracy component designed for use in board mount applications.

  • Output Type: Wheatstone bridge
  • Features: Temperature Compensation
  • Pressure Type: Compound
  • Pressure: ±15PSI (±103.42kPa)
  • Maximum Pressure: ±45PSI (±310.26kPa)
  • Output: 0 mV to 100 mV (10V)
  • Accuracy: ±0.5%
  • Port Size: Male 0.2" (5mm) Tube
  • Port Style: Barbless
  • Voltage Range: 2.5V to 16V
  • Temperature Range: -40°C to 85°C
  • Package: 4-SIP Module
  • Pack Quantity: 25
