Same model may have multiple batches, images only for reference.

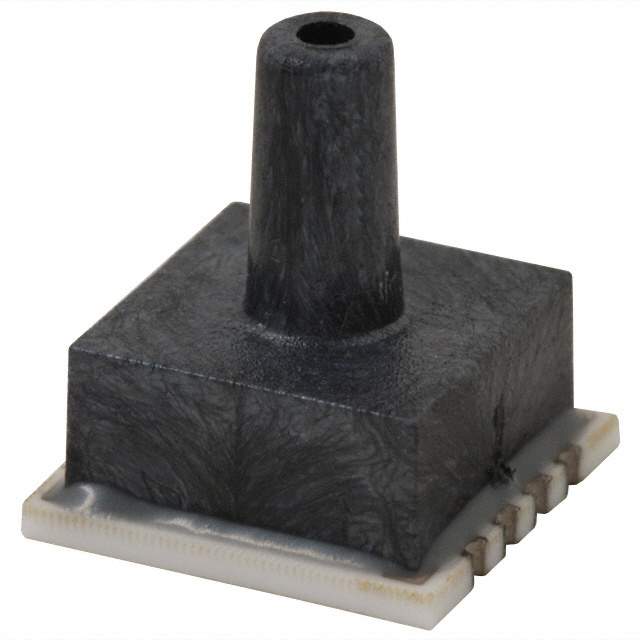

SCCP15ASMTLP Real Image
Same model may have multiple batches, images only for reference.

SCCP15ASMTLP

Part No SCCP15ASMTLP
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR ABSOLUTE 0-15PSIA SMT / Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.29mm) Tube 40 mV ~ 95 mV 8-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCC SMT
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 40 mV ~ 95 mV
Accuracy ±1%
Port Size Male - 0.09" (2.29mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SMD Module
Other Names 480-2675-5
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234816-SCCP15ASMTLP
Ultra Librarian 3D Model Ultra Librarian SCCP15ASMTLP CAD Model

Description

The SCCP15ASMTLP pressure sensor from Honeywell Sensing and Productivity Solutions has a pressure type of absolute and an operating pressure of 15PSI.

  • Pressure Type: absolute
  • Operating Pressure: 15PSI
  • Port Size: male 0.09-inch tube
  • Temperature Compensated: Yes
  • Output Type: Wheatstone Bridge
  • Output: 40mV and 95mV
  • Accuracy: ±1%
