Same model may have multiple batches, images only for reference.

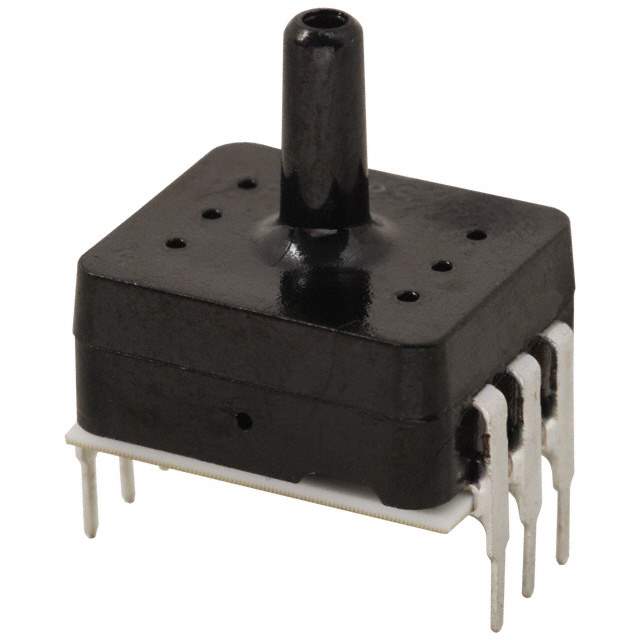

SDX100A2 Real Image
Same model may have multiple batches, images only for reference.

SDX100A2

Part No SDX100A2
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR TEMP COMP 100PSIA DIP / Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.11" (2.67mm) Tube 0 mV ~ 100 mV (12V) 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SDX
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV (12V)
Accuracy ±1%
Voltage - Supply 20V
Port Size Male - 0.11" (2.67mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Base Product Number SDX100
Other Names 287-1032,287-1032R
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234793-SDX100A2
Ultra Librarian 3D Model Ultra Librarian SDX100A2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SDX100A2 is a temperature compensated pressure sensor transducer that operates at an absolute pressure of 100 PSI (689.48 kPa) and has a maximum pressure of 150 PSI (1034.21 kPa).

  • Port Size: male 0.11" (2.67 mm) tube
  • Port Style: barbless
  • Output Type: Wheatstone bridge
  • Output Range: 0 mV to 100 mV (12V)
  • Accuracy: ±1%
  • Package: 6-DIP module
  • Application: board mount
  • Operating Temperature: -40°C to 85°C
