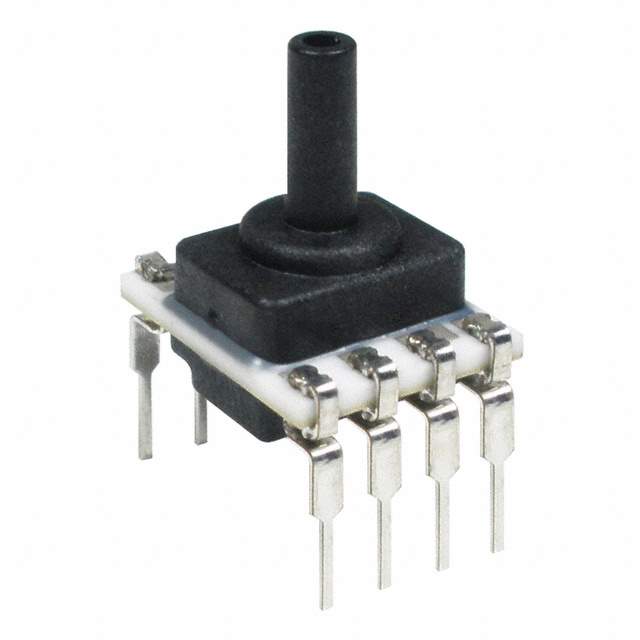

SSCDLNN040MGSA5 Real Image
Same model may have multiple batches, images only for reference.

SSCDLNN040MGSA5

Part No SSCDLNN040MGSA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 0.58PSI DIFF 5V DIP  /  Pressure Sensor 0.58PSI (4kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 12 b 8-DIP (0.524", 13.30mm), Top Port
Datasheet
SSCDLNN040MGSA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 0.58PSI (4kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 10.88PSI (75kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package 8-DIP
Base Product Number SSCDLNN
Other Names 480-3662,2266-SSCDLNN040MGSA5
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234502-SSCDLNN040MGSA5
Ultra Librarian 3D Model Ultra Librarian SSCDLNN040MGSA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SSCDLNN040MGSA5 is a pressure sensor with a vented gauge pressure type. It is manufactured by Honeywell Sensing and Productivity Solutions.

  • Pressure Type: vented gauge
  • Operating Pressure: 0.58 PSI (4kPa)
  • Maximum Pressure: 10.88 PSI (75kPa)
  • Accuracy: ±0.25%
  • Output: 12 b
  • Output Type: SPI
  • Voltage Supply: 4.75V to 5.25V
  • Port: top port
  • Port Size: male - 0.1" (2.47mm) tube
  • Port Style: barbed
  • Termination Style: PC pin
  • Package: 8-DIP (0.524", 13.30mm) package
  • Standard Package: 50 pieces
  • MSL Level: 1 (unlimited)
  • HTSUS: 9026.20.4000
