Same model may have multiple batches, images only for reference.

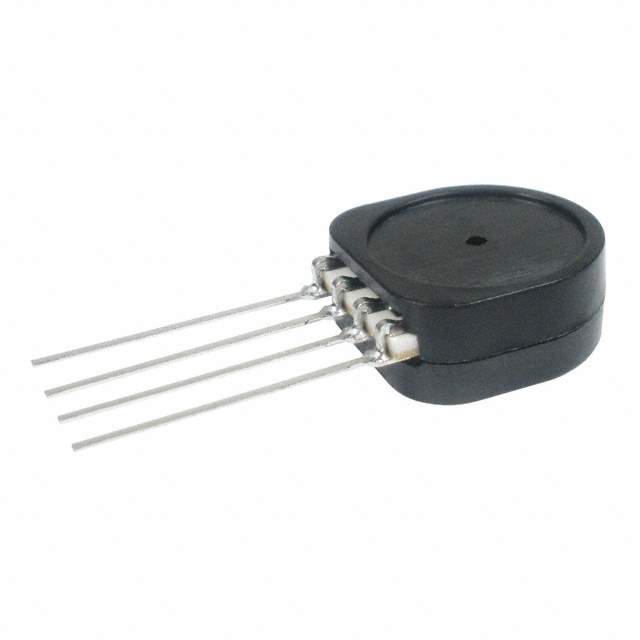

SSCSSND002NGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSSND002NGAA5

Part No SSCSSND002NGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 2PSI GAUG 5V SIP / Pressure Sensor 0.07PSI (0.5kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSSND002NGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 0.07PSI (0.5kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.95V ~ 5.05V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 9.76PSI (67.28kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSSND
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234532-SSCSSND002NGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSSND002NGAA5 CAD Model

Description

The TruStability® SSC pressure sensor is a high precision sensor designed for use in board mount applications.

  • Mounting Style: Board Mount
  • Output: Amplified
  • Temperature Compensation: Yes
  • Pressure Type: Vented Gauge
  • Operating Pressure: 0.07PSI (0.5kPa)
  • Maximum Pressure: 9.76PSI (67.28kPa)
  • Voltage Supply: 4.95V ~ 5.05V
  • Output Type: Analog Voltage
  • Output Range: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Package: 4-SIP Module
  • Device Package: 4-SIP
  • Temperature Range: -40°C ~ 85°C
