Same model may have multiple batches, images only for reference.

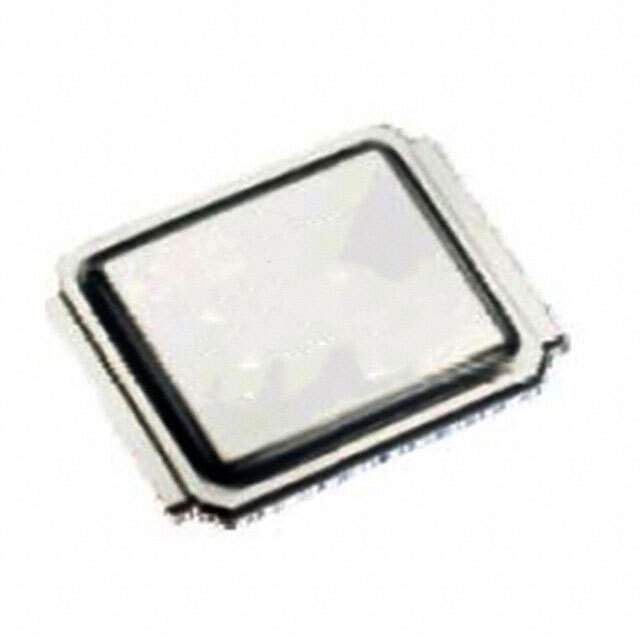

AUIRF7736M2TR Real Image
Same model may have multiple batches, images only for reference.

AUIRF7736M2TR

Part No AUIRF7736M2TR
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 179A DIRECTFET
Datasheet
AUIRF7736M2TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 22A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 150μA
Max Gate Charge 108nC @ 10V
Max Input Capacitance 4267pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 63W (Tc)
Maximum Rds On at Id,Vgs 3 mOhm @ 65A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package DIRECTFET M4
Dimension DirectFET Isometric M4
Win Source Part Number 199525-AUIRF7736M2TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AUIRF7736M2TR CAD Model

Description

Description

The AUIRF7736M2TR is engineered as an N-channel MOSFET ideal for high-power automotive electronics, offering significant improvements in efficiency and thermal management.

  • Applications:
  • Transmission control units
  • Advanced driver-assistance systems (ADAS)
  • Electric vehicle charging
  • PWM motor drives
  • Features and Benefits:
  • Superior thermal resistance for sustained performance
  • Reduced conduction and switching losses
  • Ensures protection against voltage spikes
  • High avalanche capability

Designed to meet the challenges of advanced automotive technology, the AUIRF7736M2TR stands as a benchmark for reliable performance.
