The BGA711N7 E6327 is a Silicon Germanium (SiGe) Low Noise Amplifier (LNA) from Infineon Technologies, designed for GNSS (Global Navigation Satellite System) applications. It operates in the 1559 MHz to 1606 MHz frequency range, making it suitable for GPS, GLONASS, Galileo, and BeiDou systems. The LNA is optimized for low noise figure and high gain, enhancing the sensitivity of GNSS receivers.

Applications:

• GPS Receivers: Improves signal reception in GPS devices.
• GLONASS Receivers: Enhances the performance of GLONASS-based navigation systems.
• Galileo Receivers: Boosts the sensitivity of Galileo satellite signal reception.
• BeiDou Receivers: Used to amplify signals in BeiDou navigation devices.
• Navigation Systems: Found in automotive navigation, handheld GPS devices, and asset tracking systems.
• Mobile Phones: Integrated into mobile phones to improve GPS accuracy.
• Tablets: Used to enhance GPS capabilities in tablet devices.

Features:

• Low Noise Figure: Typically 0.65 dB, minimizing unwanted noise and improving signal quality.
• High Gain: Provides a gain of 17.5 dB, boosting the signal strength.
• Supply Voltage: Operates with a supply voltage of 1.5 V to 3.6 V, making it compatible with various systems.
• Low Current Consumption: Consumes only 4.1 mA of current, enhancing battery life in portable devices.
• Integrated Matching Network: Simplifies the design process and reduces the number of external components required.

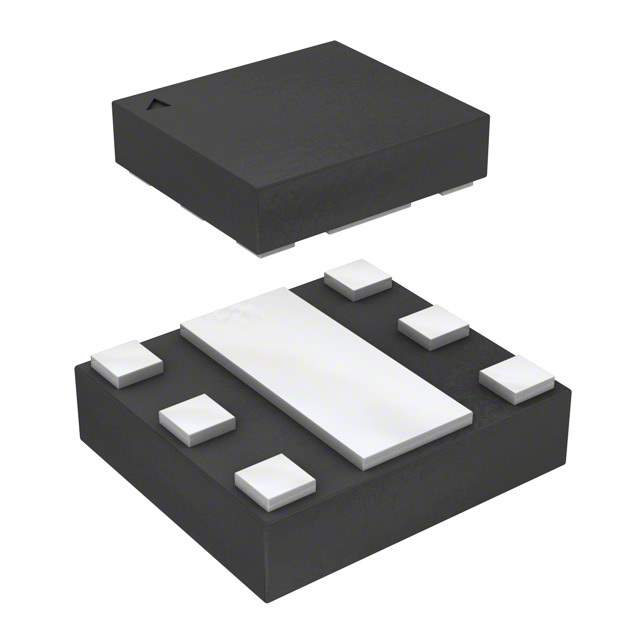

• Small Package: Available in a TSNP-7-1 package, enabling compact designs.
• High Input IP3: +11 dBm, improving linearity and reducing distortion.

Benefits:

• Improved Sensitivity: Enhances the ability of GNSS receivers to detect weak signals.
• Extended Battery Life: Low current consumption contributes to longer battery life in portable devices.
• Simplified Design: Integrated matching network reduces component count and simplifies the design process.
• Compact Size: Small package enables integration into compact devices.
• Enhanced Accuracy: Improves the accuracy of GNSS positioning by amplifying signals with minimal noise.
• Robust Performance: High input IP3 ensures reliable performance in noisy environments.

The BGA711N7 E6327 LNA provides a cost-effective solution for enhancing the performance of GNSS receivers. Its low noise figure, high gain, and integrated matching network make it an ideal choice for a wide range of applications where accurate positioning and reliable signal reception are critical.
