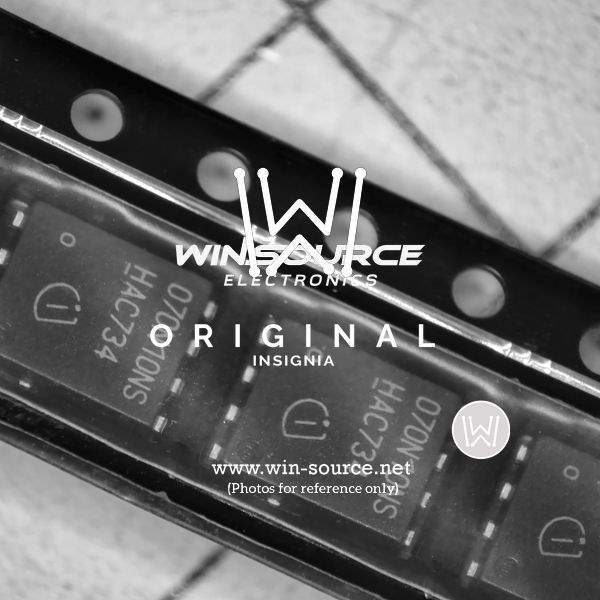

BSC070N10NS3GATMA1

Part No BSC070N10NS3GATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 90A TDSON-8
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 100V
Continuous Drain Current at 25°C 90A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 3.5V @ 75μA
Max Gate Charge 55nC @ 10V
Max Input Capacitance 4000pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 114W (Tc)
Maximum Rds On at Id,Vgs 7 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TDSON-8
Dimension 8-PowerTDFN
Win Source Part Number 109649-BSC070N10NS3GATMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSC070N10NS3GATMA1 CAD Model

Description

BSC070N10NS3GATMA1 from Infineon Technologies is listed in the Transistors - FETs, MOSFETs - RF category and is typically considered for high-frequency switching, RF-related power stages, and supporting circuitry where efficient MOSFET performance is important. Engineers may evaluate this part for telecom infrastructure, industrial electronics, power management subsystems, and other designs that need a reputable semiconductor source with strong application support. Infineon is widely recognized for power semiconductor portfolio depth, which can make this device relevant for both new designs and maintenance sourcing. The current lifecycle status for BSC070N10NS3GATMA1 is information not available in the provided data, so design and procurement teams should confirm current manufacturer status before committing to volume production. RoHS compliance information is also not available from the provided input. For compliance-sensitive applications, engineers should verify the latest datasheet, material declaration, and manufacturer documentation before qualification or purchase.
