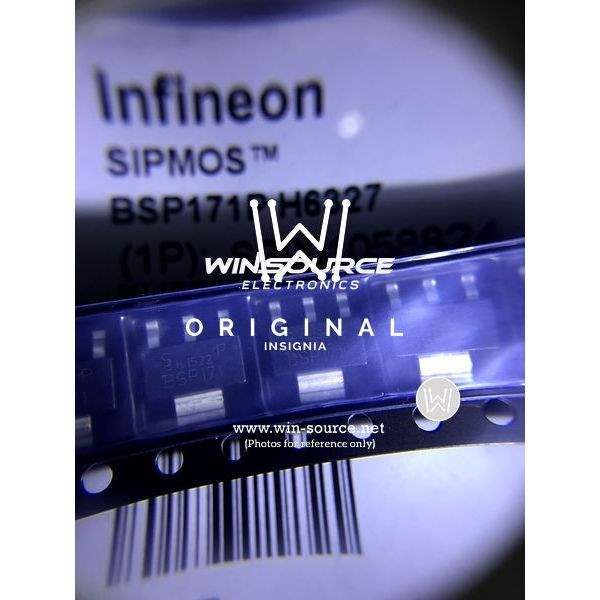

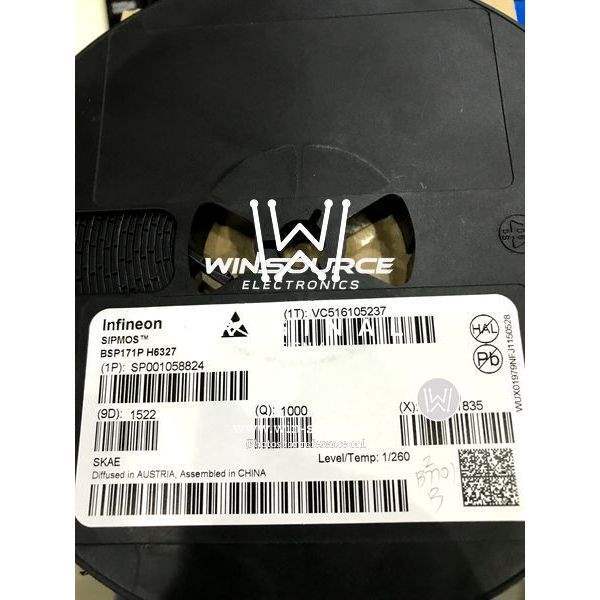

BSP171P Infineon Technologies BSP171P label picture BSP171P real image
Same model may have multiple batches, images only for reference.
BSP171P Infineon Technologies BSP171P label picture BSP171P real image
BSP171P Infineon Technologies BSP171P label picture BSP171P real image
Same model may have multiple batches, images only for reference.

BSP171P

Part No BSP171P
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 60V 1.9A SOT223
Datasheet
BSP171P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 1.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 460μA
Max Gate Charge 20nC @ 10V
Max Input Capacitance 460pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1.8W (Ta)
Maximum Rds On at Id,Vgs 300 mOhm @ 1.9A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-SOT223-4
Dimension TO-261-4, TO-261AA
Win Source Part Number 092881-BSP171P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BSP171P CAD Model

Description

Product Overview

The BSP171P is a high-performance P-channel MOSFET designed to deliver superior efficiency and reliability in electronic circuits. Its design reduces switching losses, making it ideal for high-efficiency power applications.

Features and Benefits

  • Superior Efficiency: Designed to minimize switching losses for enhanced performance.
  • Compact Footprint: Saves PCB space, allowing for more compact device design.
  • Low Thermal Resistance: Improves heat dissipation, enhancing overall device reliability.

Applications

  • Switching Regulators
  • Reverse Polarity Protection
  • Load Switches
  • Power Management in Portable Devices

Additional Details

With its efficient design and reliable performance, the BSP171P is well-suited to applications demanding high efficiency and compact size, making it a preferred option for designers aiming to optimize space and performance.
