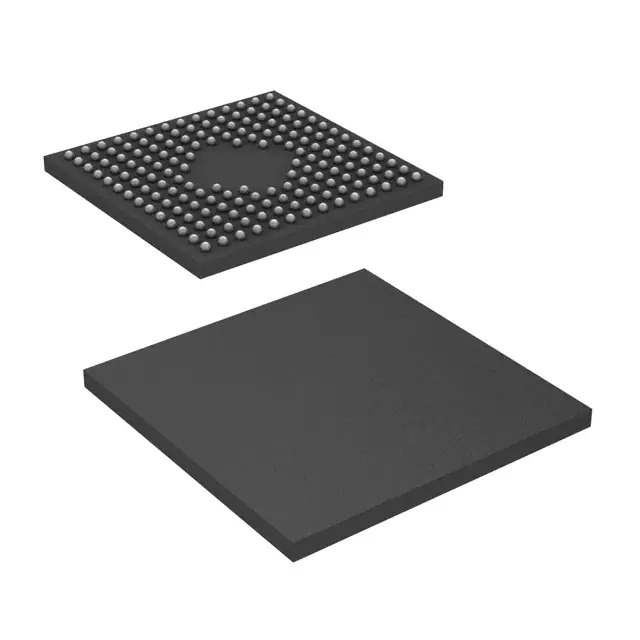

CY7C09569V-100BBC Real Image
Same model may have multiple batches, images only for reference.

CY7C09569V-100BBC

Part No CY7C09569V-100BBC
Manufacturer Infineon Technologies
Catalog Memory
Description IC SRAM 576KBIT PAR 172FBGA
Datasheet
CY7C09569V-100BBC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Infineon Technologies
Package Tray
Product Status Obsolete
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Dual Port, Synchronous
Memory Size 576Kbit
Memory Organization 16K x 36
Memory Interface Parallel
Clock Frequency 100 MHz
Access Time 5 ns
Voltage - Supply 3V ~ 3.6V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 172-LBGA
Supplier Device Package 172-FBGA (15x15)
Base Product Number CY7C09569
Standard Package 126 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B2B
HTSUS 8542.32.0041
Win Source Part Number 581986-CY7C09569V-100BBC
Ultra Librarian 3D Model Ultra Librarian CY7C09569V-100BBC CAD Model

Description

The CY7C09569V-100BBC is a dual-port synchronous SRAM from Infineon Technologies.

  • Category: memory
  • Memory Size: 576Kbit
  • Access Time: 5ns
  • Voltage Supply: 3V to 3.6V
  • Clock Frequency: 100MHz
  • Mounting Type: surface mountable
  • Package: 172-LBGA
  • Operating Temperature: 0°C to 70°C
  • Memory Organization: 16K x 36
  • Status: obsolete
