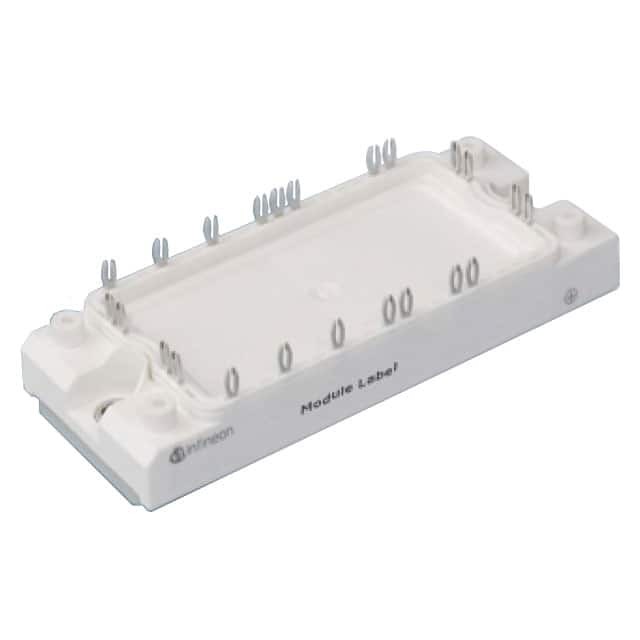

Same model may have multiple batches, images only for reference.
FS50R06YE3BOMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

FS50R06YE3BOMA1

Part No FS50R06YE3BOMA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Modules
Mfr Infineon Technologies
Package Tray
Product Status Not For New Designs
Configuration Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 60 A
Power - Max 160 W
Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 50A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 3.1 nF @ 25 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Base Product Number FS50R06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1315311-FS50R06YE3BOMA1
Ultra Librarian 3D Model Ultra Librarian FS50R06YE3BOMA1 CAD Model

Description

The FS50R06YE3BOMA1 is an IGBT module that is designed for use in full bridge inverter configurations.

  • Type: IGBT Module
  • Configuration: Full Bridge Inverter
  • Collector-Emitter Breakdown Voltage: 600 V (Maximum)
  • Collector Current: 60 A (Maximum)
  • Voltage Drop: 1.9 V @ 15 V Gate-Emitter Voltage and 50 A Collector Current
  • Input Capacitance: 3.1 nF @ 25 V Collector-Emitter Voltage
  • Package: Module
  • Mounting Type: Chassis Mount
  • Ideal for: Applications such as Motor Drives, Power Supplies, and Welding Equipment
