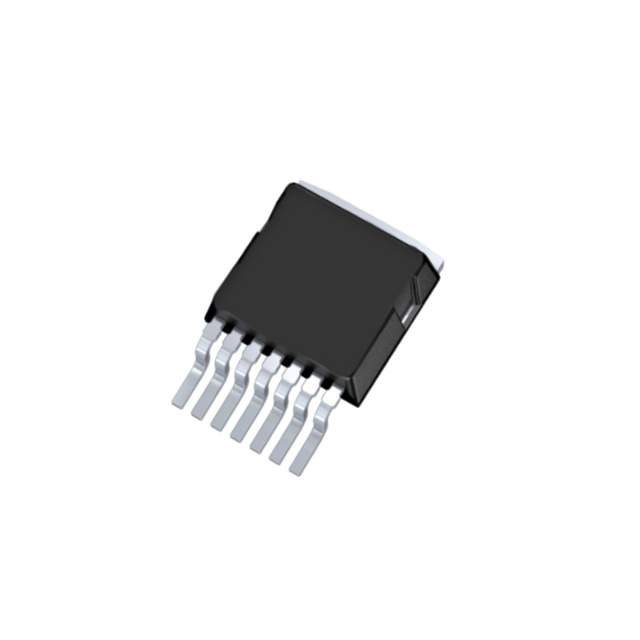

IMBG120R030M1HXTMA1

Name: IMBG120R030M1HXTMA1
Brand: Infineon Technologies
SKU: 1350414
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IMBG120R030M1HXTMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	SICFET N-CH 1.2KV 56A TO263 / N-Channel 1200 V 56A (Tc) 300W (Tc) Surface Mount PG-TO263-7-12
Datasheet	IMBG120R030M1HXTMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	CoolSiC™
Package	Tape & Reel
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	56A (Tc)
Rds On (Max) @ Id, Vgs	41mOhm @ 25A, 18V
Vgs(th) (Max) @ Id	5.7V @ 11.5mA
Gate Charge (Qg) (Max) @ Vgs	63 nC @ 18 V
Vgs (Max)	+18V, -15V
Input Capacitance (Ciss) (Max) @ Vds	2290 pF @ 800 V
FET Feature	Standard
Power Dissipation (Max)	300W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7-12
Package / Case	TO-263-8, D²Pak (7 Leads + Tab) , TO-263CA
Base Product Number	IMBG120
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1350414-IMBG120R030M1HXTMA1
Ultra Librarian 3D Model	Ultra Librarian IMBG120R030M1HXTMA1 CAD Model

Alternative Products

Description

The Infineon IMBG120R030M1HXTMA1 is a CoolSiC™ series silicon carbide-based N-channel standard FET.

Vdss: 1200V
Id: 56A (Tc)
Power Dissipation: 300W (Tc)
Rds On: 41mOhm @ 25A, 18V
Vgs Range: +18V, -15V
Vgs(th) Max: 5.7V @ 11.5mA
Qg: 63 nC @ 18 V
Ciss: 2290 pF @ 800 V
Mounting Type: Surface Mount
Package/Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package: PG-TO263-7-12
Temperature Range: -55°C to 175°C (TJ)
Manufacturer: Infineon
