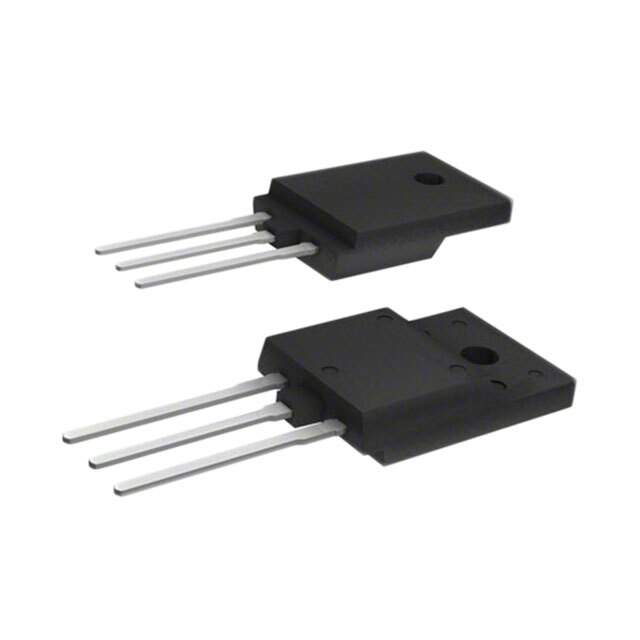

IPA80R310CEXKSA2

Name: IPA80R310CEXKSA2
Brand: Infineon Technologies
SKU: 776838
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IPA80R310CEXKSA2
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 800V TO-220-3 / Trans MOSFET N-CH 800V 16.7A 3-Pin(3+Tab) TO-220FP Tube
Datasheet	IPA80R310CEXKSA2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Series	CoolMOS
Packaging	Tube
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	800V
Current - Continuous Drain (Id) @ 25°C	16.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs(th) (Maximum) @ Id	3.9V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs	91nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	2320pF @ 100V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	35W (Tc)
Rds On (Maximum) @ Id, Vgs	310 mOhm @ 11A, 10V
Operating Temperature Range	-40°C ~ 150°C (TJ)
Mounting Style	Through Hole
Manufacturer Package	PG-TO220FP
Package	TO-220-3 Full Pack
Win Source Part Number	776838-IPA80R310CEXKSA2
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IPA80R310CEX
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian IPA80R310CEXKSA2 CAD Model

Alternative Products

Description

The Infineon Technologies IPA80R310CEXKSA2 is a MOSFET transistor that belongs to the CoolMOS series of Discrete Semiconductor Products.

Drain to Source Voltage (Vdss): 800V
Current - Continuous Drain (Id) @ 25°C: 16.7A (Tc)
Rds On (Max) @ Id, Vgs: 310 mOhm @ 11A, 10V
Vgs(th) (Maximum) @ Id: 3.9V @ 1mA
Power Dissipation (Maximum): 35W (Tc)
Gate Charge (Qg) (Maximum) @ Vgs: 91nC @ 10V
Mounting Style: Through hole
Package: TO-220-3 Full Pack
Applications: Power supplies, motor drives, and lighting
