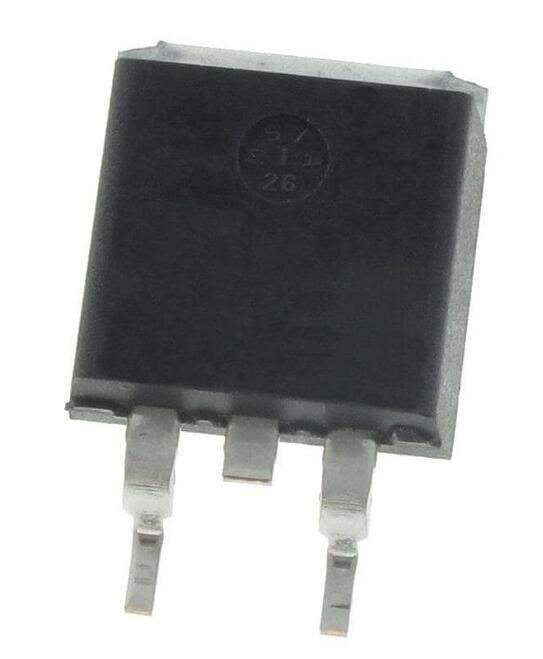

IPB80P04P4-05 Infineon Technologies
Same model may have multiple batches, images only for reference.

IPB80P04P4-05

Part No IPB80P04P4-05
Manufacturer Infineon Technologies
Catalog Transistors – FETs, MOSFETs – Single
Description MOSFETs P-Ch -40V -80A D2PAK-2 OptiMOS-P2
Datasheet
IPB80P04P4-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon
Category Transistors – FETs, MOSFETs – Single
Technology Si
Mounting Style SMD/SMT
Package / Case D2PAK-3 (TO-263-3)
Transistor Polarity P-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 40 V
Id - Continuous Drain Current 80 A
Vgs - Gate-Source Voltage - 20 V, 20 V
Vgs th - Gate-Source Threshold Voltage 4 V
Qg - Gate Charge 151 nC
Ultra Librarian 3D Model Ultra Librarian IPB80P04P4-05 CAD Model

Description

Features

• P-channel - Normal Level - Enhancement mode<br />• AEC qualified<br />• MSL1 up to 260°C peak reflow<br />• 175°C operating temperature<br />• Green package (RoHS compliant)• 100% Avalanche tested
