Same model may have multiple batches, images only for reference.
IPLU300N04S41R1XTMA1 Infineon Technologies

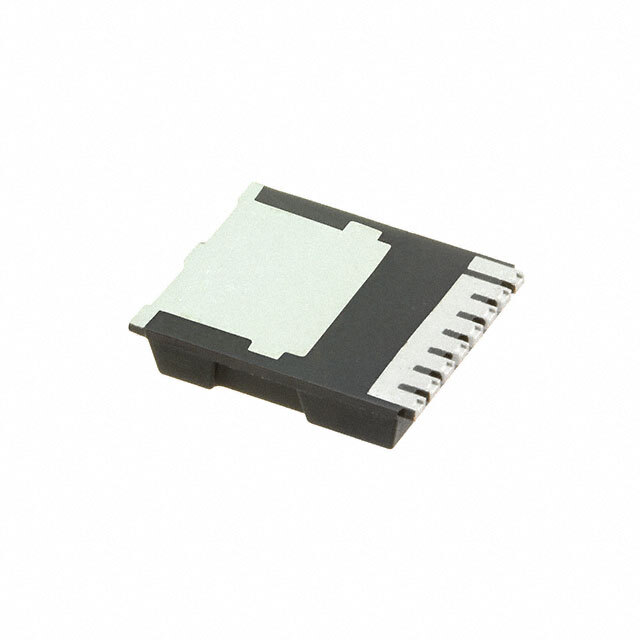

Same model may have multiple batches, images only for reference.

IPLU300N04S41R1XTMA1

Part No IPLU300N04S41R1XTMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 300A 8HSOF / N-Channel 40 V 300A (Tc) 300W (Tc) Surface Mount PG-HSOF-8-1
Datasheet
IPLU300N04S41R1XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series Automotive, AEC-Q101, OptiMOS™
Package Tape & Reel
Product Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 300A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 1.15mOhm @ 100A, 10V
Vgs(th) (Max) @ Id 4V @ 125µA
Gate Charge (Qg) (Max) @ Vgs 151 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 12090 pF @ 25 V
FET Feature -
Power Dissipation (Max) 300W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-HSOF-8-1
Package / Case 8-PowerSFN
Base Product Number IPLU300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1353538-IPLU300N04S41R1XTMA1
Ultra Librarian 3D Model Ultra Librarian IPLU300N04S41R1XTMA1 CAD Model

Description

The 1353538-IPLU300N04S41R1XTMA1 is an N-Channel MOSFET transistor from Infineon Technologies.

  • Category: Discrete Semiconductor Products
  • Series: Automotive, AEC-Q101, OptiMOS
  • Temperature Range: -55°C to 175°C
  • Drain-to-Source Voltage (Vdss): 40V
  • Continuous Drain Current (Id): 300A
  • On-Resistance (Rds On): 1.15mOhm
  • Gate Charge (Qg): 151nC
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
