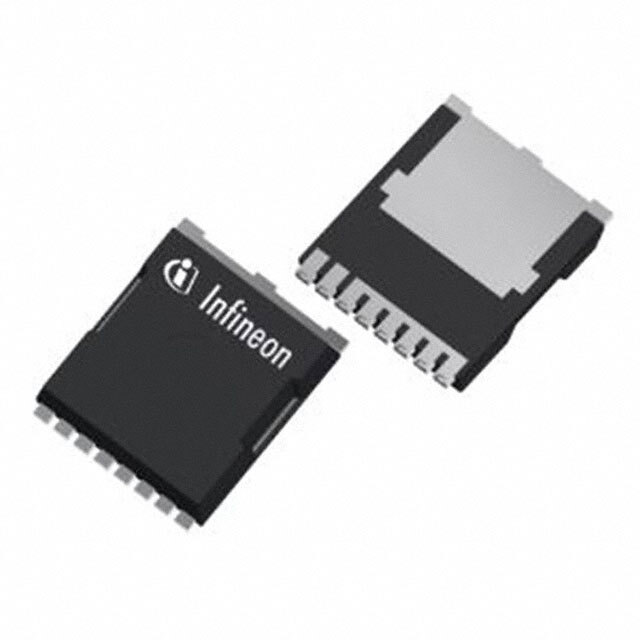

The Infineon Technologies IPT65R195G7XTMA1 is a N-channel MOSFET transistor from Infineon Technologies.

• Series: CoolMOS™ C7
• Drain to Source Voltage: 650V
• Maximum Continuous Drain Current: 14A @ 25°C
• Rds On (Max) @ Id, Vgs: 195mOhm @ 4.8A, 10V
• Applications: Designed for use in applications such as power supplies, lighting, and motor control
• Package: PG-HSOF-8-2
• Maximum Power Dissipation: 97W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 996 pF @ 400 V
• Temperature Range: -55°C to 150°C (TJ)
• Classification: EAR99
